Progress Report #09 | February 2023
Introduction

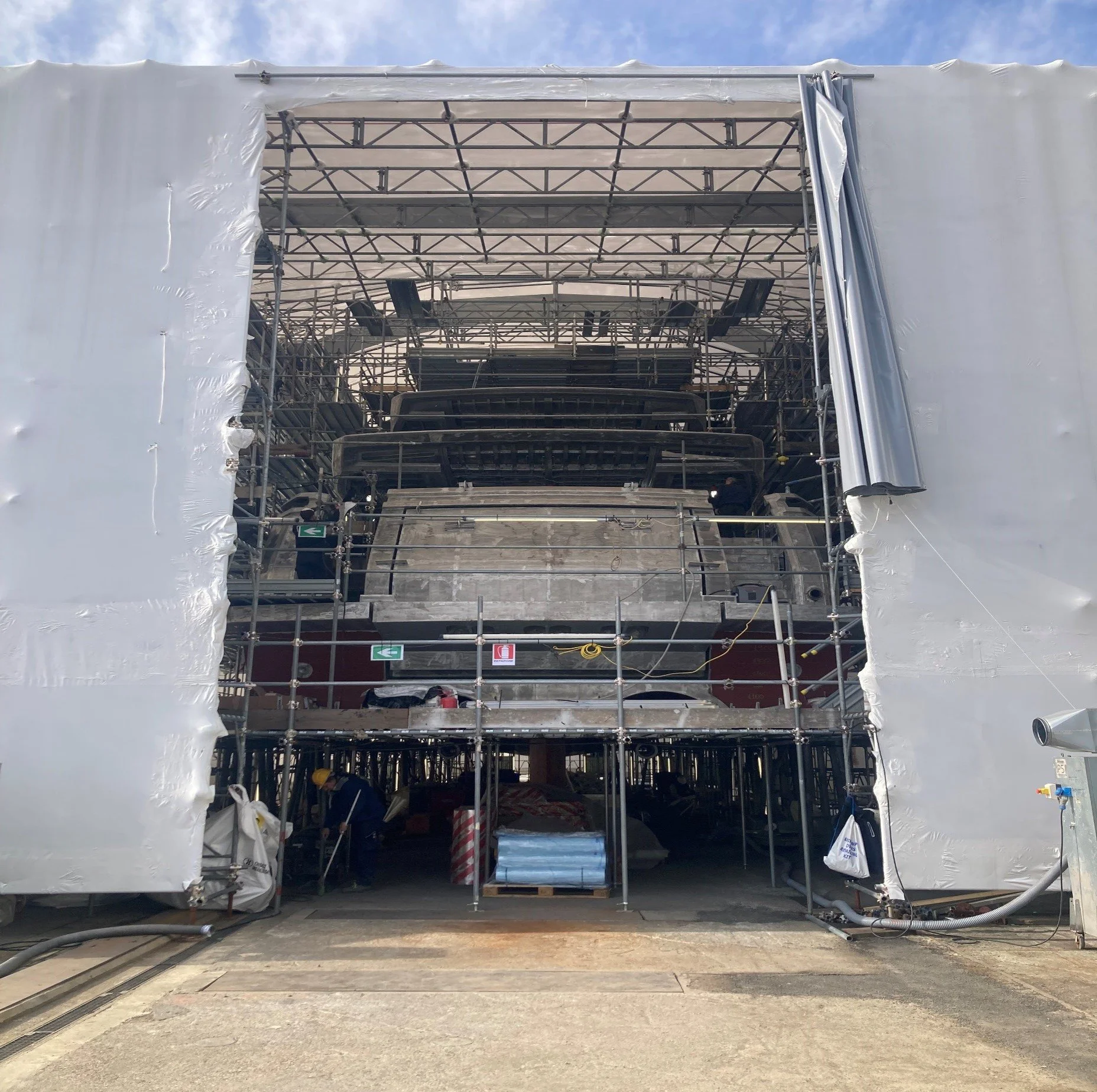

The scaffolding and tenting are now complete as the Vessel is now weather proofed and sitting in position on the Shipyard floor in the San Lorenzo production facility.
Pipe work, insulation works, sound dampening and hot-works are ongoing.
The welding segments are continuously being examined thoroughly by ABS classification society, San Lorenzo and Arrow as we go along.
Welding deflection tests in the hull were carried out by San Lorenzo and witnessed by Harry V Noonan Arrow PM
As mentioned in the last report, the overall quality of the aluminium work is excellent and the Yard foreman is big on cleanliness and during this period. Our intention is for this good practice to prevail.
HULL

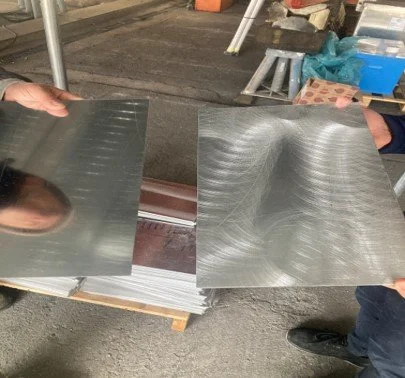

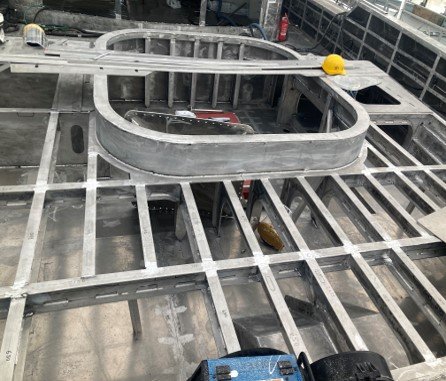

BELOW: HULL DEFLECTION TEST UNDER WAY.
RIGHT : AFT SECTION TENT ENTRANCE.

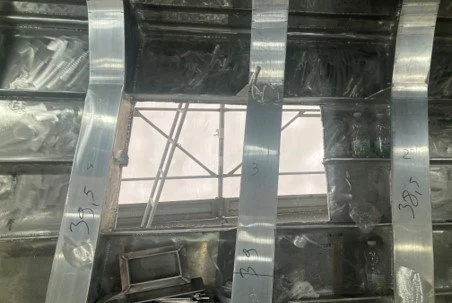

RIGHT : UNDER LIGHTING CUT OUTS.

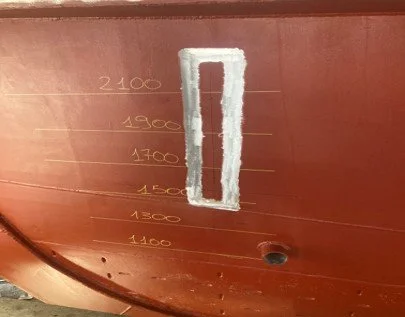

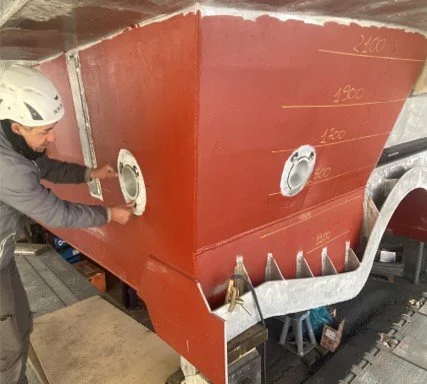

BELOW: LOAD LINE MARKERS BEING PREPARED.
SUN-DECK

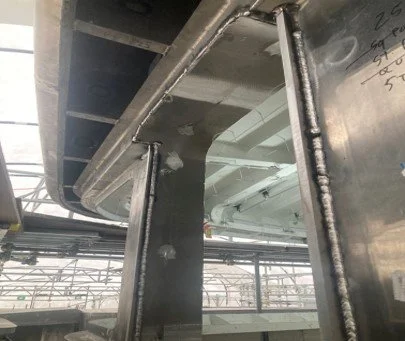

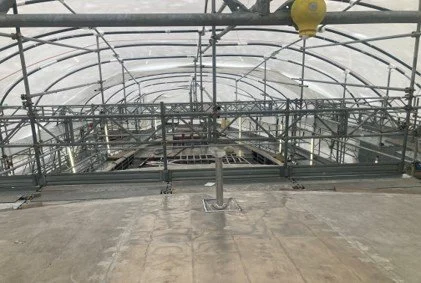

CONTINUED WORK ON ALUMINIUM IN THIS AREA. BELOW IS THE SHIP’S HORN STRUT IN PLACE ON WHEELHOUSE ROOF.
WHEELHOUSE / UPPER DECK

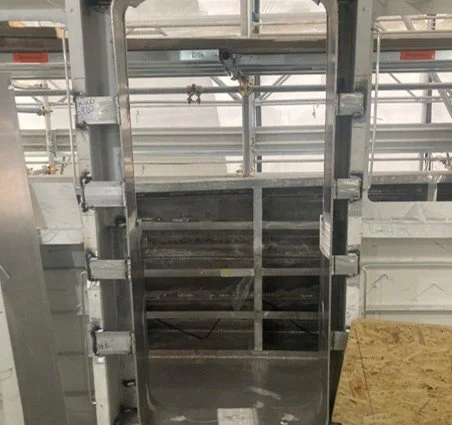

IMAGES SHOWS THE DOOR FRAMEWORK BEING INSTALLED.
BELOW: VIEW OF PORTUGEUSE BRIDGE FROM OUTSIDE.

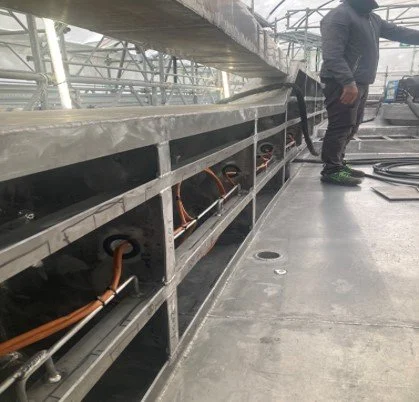

RIGHT : EXAMPLE OF CHAFE GAURDS FOR WIRING ON BULWARK INSERTS
UPPER DECK FORWARD

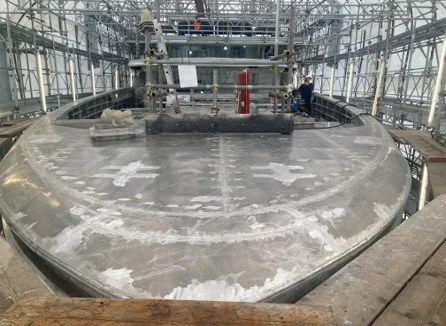

IMAGE BELOW SHOWS A VIEW FROM THE BOW GOING AFT.
ON THE RIGHT WE HAVE THE JACUZZI METAL FABRICATION STAGE.

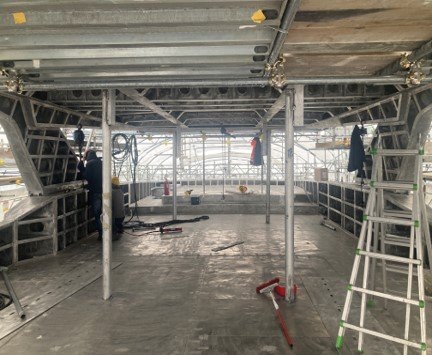

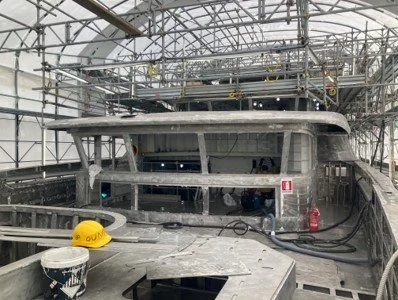

UPPER DECK VIEW OF OWNER LOUNGE
BELOW: OWNER’S LOUNGE VIEWED FROM BOW

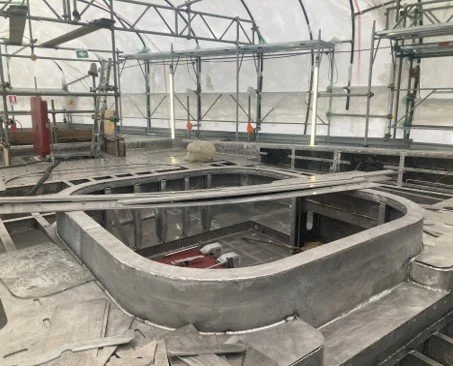

RIGHT: JACUZZI AND SURROUNDING FRAMES
MOORING STATION/BOSUN LOCKER AREA

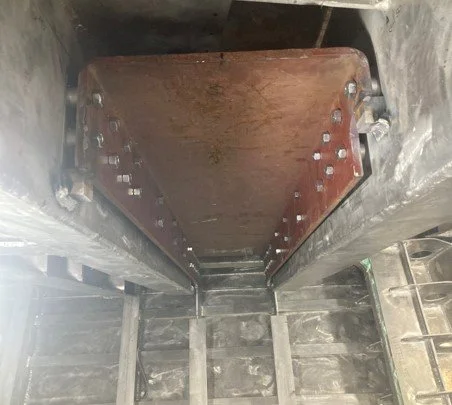

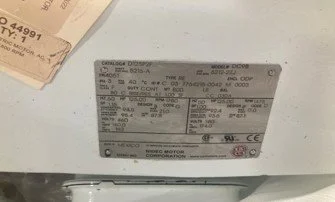

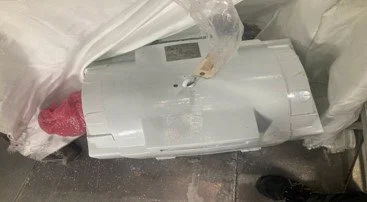

IMAGES RIGHT RELATE TO THE 90 KW ELECTRIC BOW THRUSTER.
IT IS BEING OFFERED UP FOR FITTING AND WILL BE FINALLY LAID IN POSITION AT A LATER DATE.
MOORING STATION FORWARD
IMAGE BELOW IS ALU CUT OUT FOR TO ALLOW FOREDECK CREW TO VIEW BOW DURING OPERATIONS.

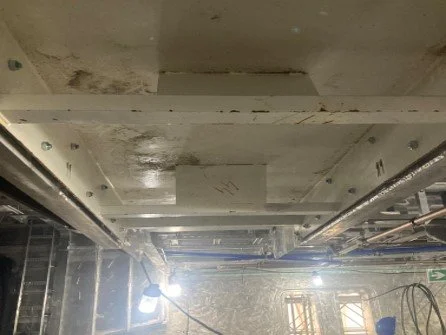

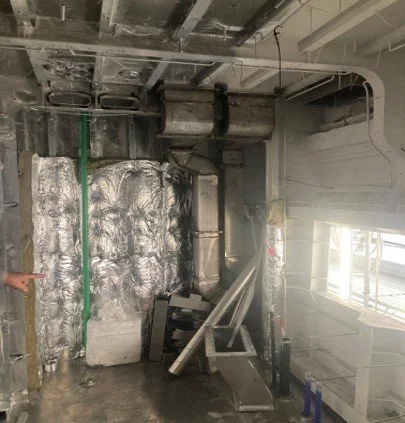

RIGHT: HVAC PLENUM BOX.
TENDER GARAGE MAIN DECK
2 X CRANE TRAVELLERS INSTALLED
LOWER DECK GUEST AREA

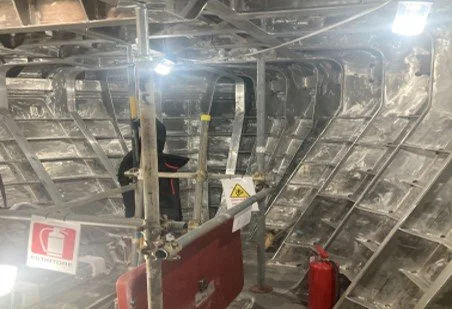

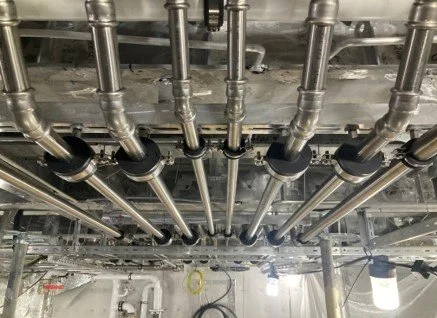

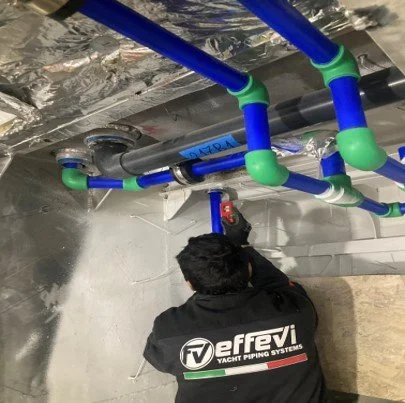

PIPE FITTERS WITNESSED USING CORRECT CALIBRATION METHODS AND GOOD PIPE INSULATION/PROTECTION IN EVIDENCE.
LOWER DECK GUEST AREA

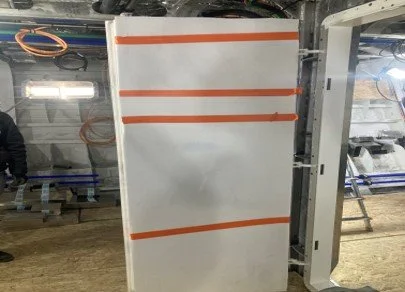

BELOW :FIRE DOORS INSTALLED AND WELL PROTECTED.

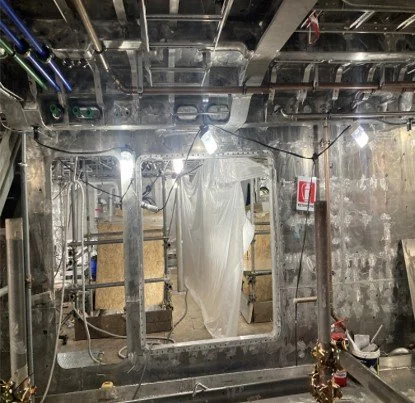

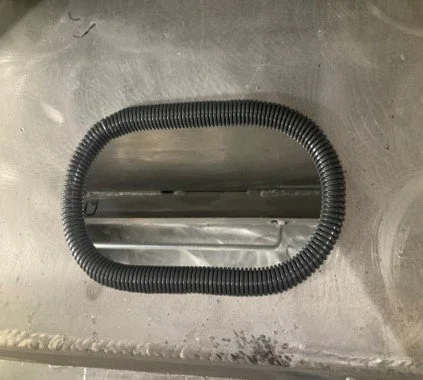

RIGHT : METAL CUT OUTS ARE BEING FITTED WITH CHAFE GAURDS FORWIRING THROUGHOUT.
LOWER DECK BILGE

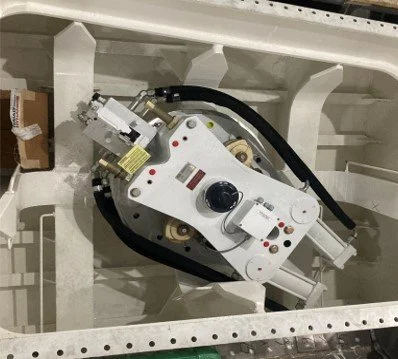

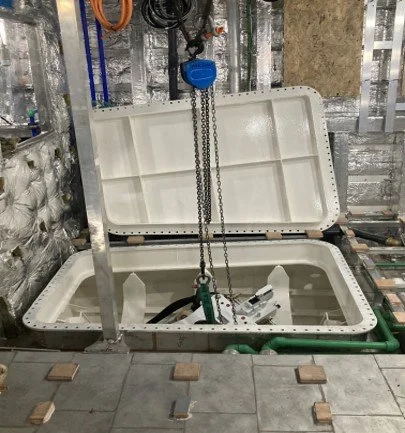

NAIAD STABILZER UNITS BEING FITTED.
GALLEY

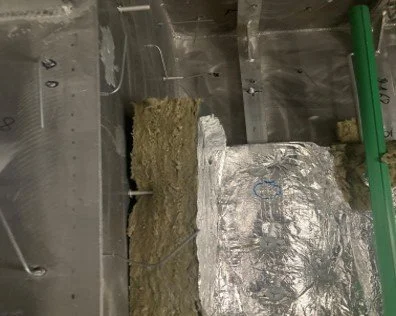

BELOW: CONTINUED INSTALLATION OF INSULATION/ROCKWOOL.

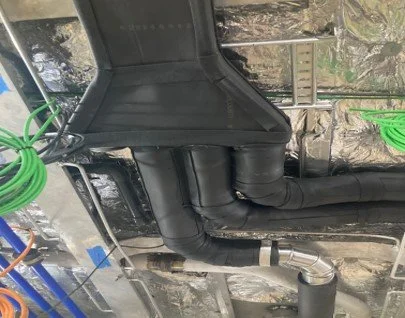

RIGHT : GALLEY EXTRACTION DUCTING BEING FITTED.
ENGINE ROOM

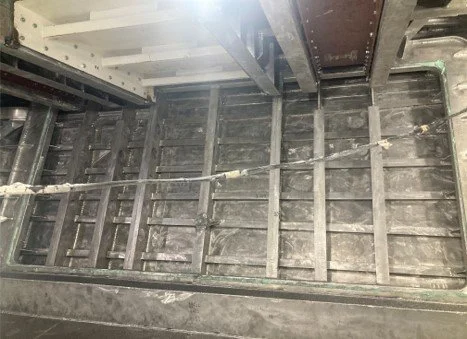

BELOW: ER SOUND DAMPENING PLATES.
RIGHT: PLATES ARE BEING KEYED CORRECTLY BEFORE MOUNTING.
ENGINE ROOM CONT’D

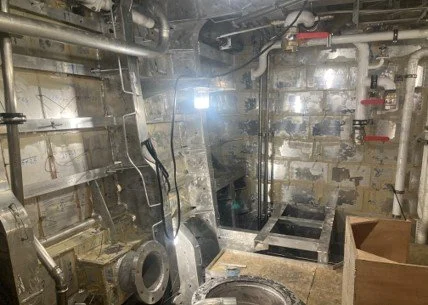

BELOW: UREA SYSTEM PIPING .
RIGHT: CUT OUT IN ER BULKHEAD TO ENABLE ACCESS FOR LARGER MACHINERY.
OWNER’S CABIN

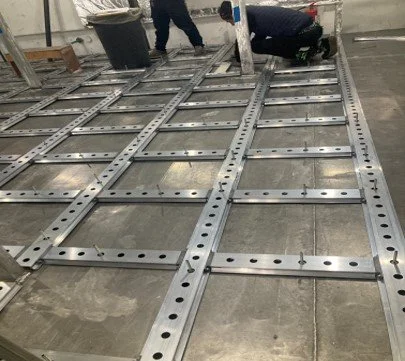

BELOW: FLOATING FLOOR FRAME-WORK

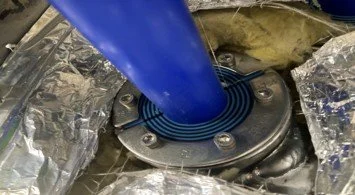

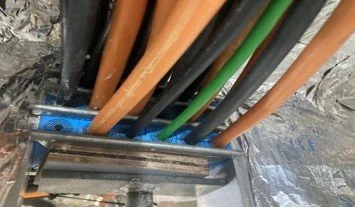

RIGHT: ROXTECH FITTINGS THROUGH BULKHEAD
BEACH CLUB AREA
BELOW: TENDER CRANE TRAVELLERS INSTALLED

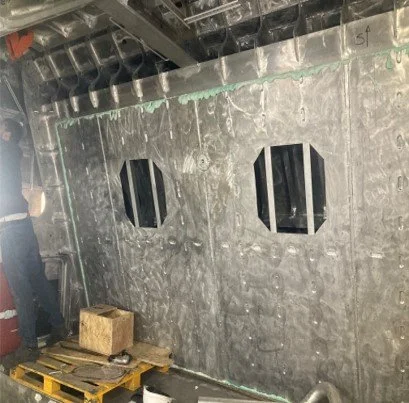

RIGHT : PORT SIDE SWIMMING PLATFORM WITH WINDOW CUT OUTS.
