Progress Report #08 | January 2023
Progress report I San Lorenzo 44m, project 157.
Location: Carrara, Italy
Report was written by Harry Noonan, Project manager at Arrow Monaco on the 31st January 2023.
Introduction
The Vessel is now blocked and in position on the Shipyard floor in the San Lorenzo production facility.
The scaffolding is almost complete in readiness for tenting. Whilst the tenting process prevails there will be much pre-outfitting works in progress which mainly includes cable tray installation throughout ,pipe work, insulation works, sound dampening and hot-works relating to the engine room frame work.
The majority of essential welding is already approved by both the classification society and San Lorenzo.
In fact the overall quality of the aluminium work is very good.
We now enter a very interesting/productive phase in the Vessel’s journey.

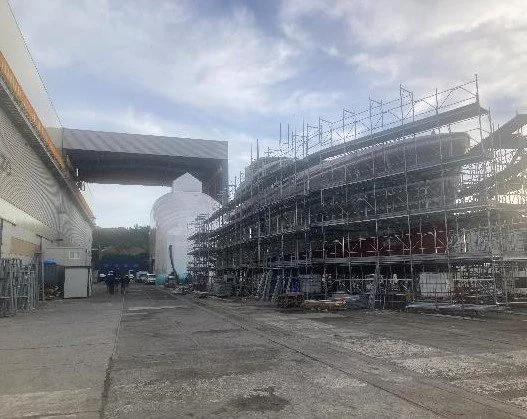

VESSEL IN POSITION AT SAN LORENZO FACILITY

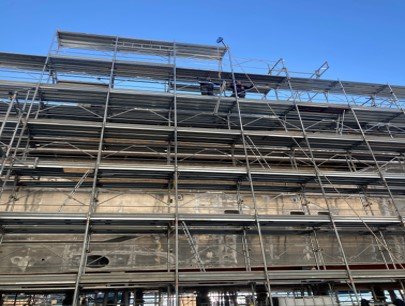

EARLY STAGES OF SCAFFOLDING DEC 2022

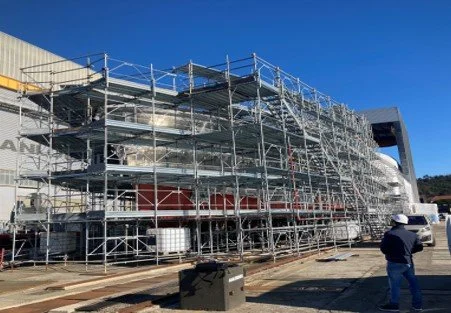

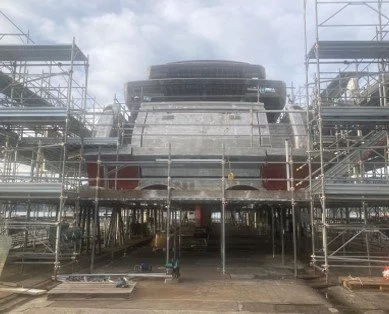

SCAFFOLDING AT ADVANCED STAGE MID JAN 2023
MAINDECK

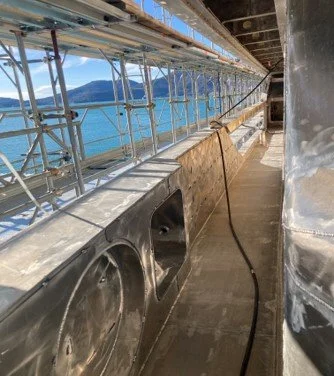

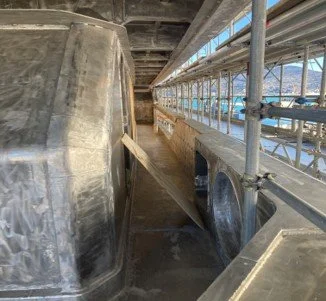

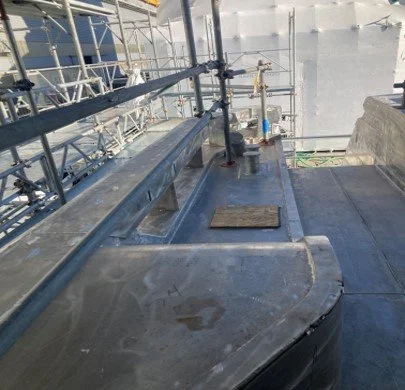

MAIN DECK PORT AND STBD SIDE WALK WAYS VIEW FROM AFT
MAINDECK AFT

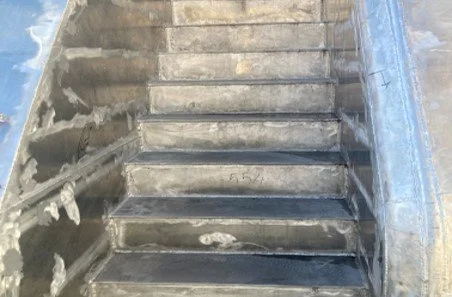

IMAGE BELOW SHOWS STAIRWELL TO SWIMMING PLATFORM FROM AFT DECK.
IMAGE ON THE RIGHT: MOORING STATION BASE.

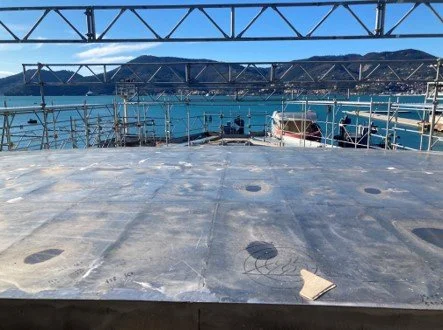

FOREDECK

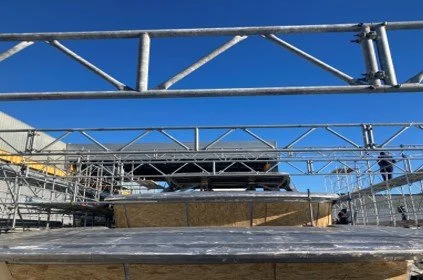

IMAGE BELOW IS VIEW FROM WHEELHOUSE.
IMAGE ON THE RIGHT: VIEW FROM OWNER VIEWING LOUNGE.

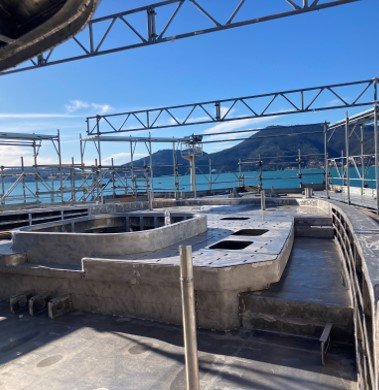

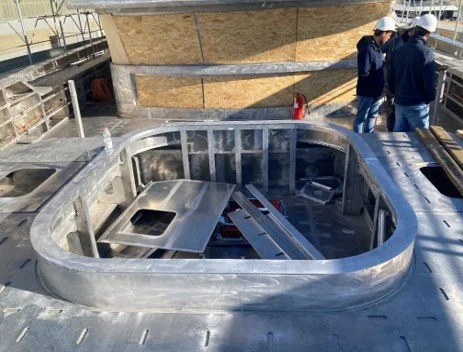

IMAGE BELOW IS JACUZZI FRAME FACING AFT.
IMAGE ON THE RIGHT: VIEW FROM THE BOW.

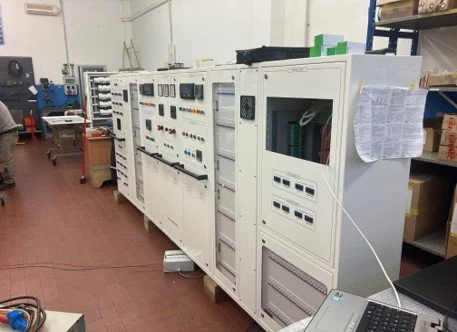

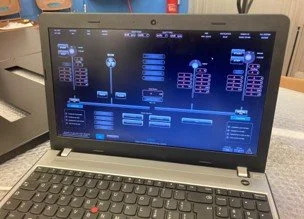

MAIN SWITCHBOARD COMMISSIONED
MAIN SWITCH WAS COMMISSIONED AND WITNESSWD BY SL, ABS AND ARROW SURVEYOR AT THE FACTORY.
EXCELLENT QUALITY.
ENGINE ROOM
BELOW IS FRAMEWORK FOR MAIN SWITCHBOARD.

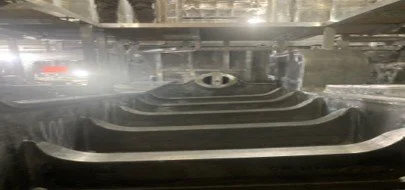

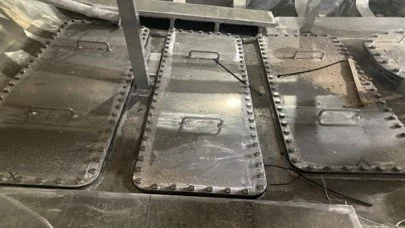

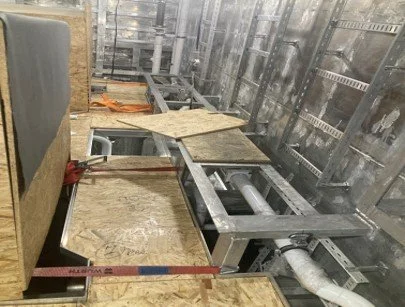

IMAGES ON THE RIGHT: TANK TOPS AND FRAMEWORK IN THE ENGINE ROOM BILGE AREA.

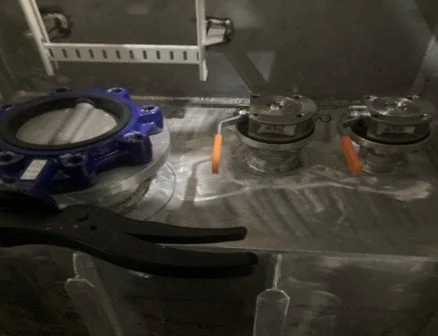

BELOW IS AN IMAGE OF THE SEACHEST BUTTERFLY VALVE AND CATHELCO VALVES.

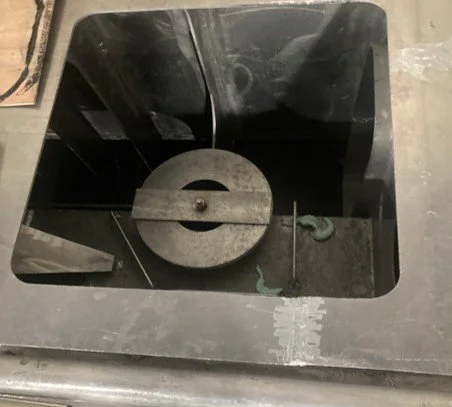

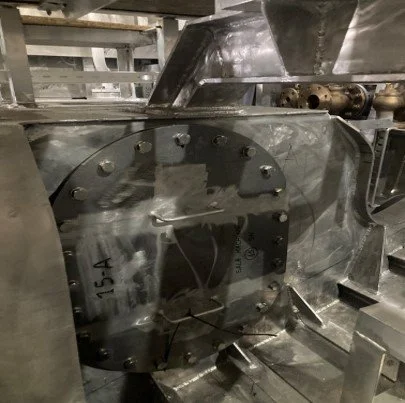

IMAGE ON THE RIGHT: MANHOLE ENTRY TO FUEL OIL TANK ER.
LOWER DECK GUEST AREA

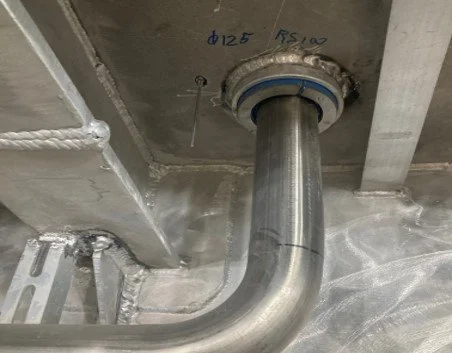

BELOW IS AN IMAGE OF THE EMERGENCY BILGE PIPES IN INOX.

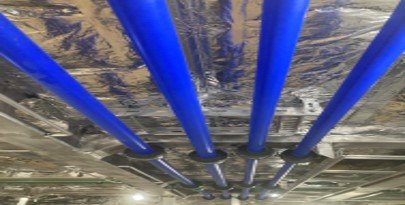

IMAGES ON THE RIGHT: EXAMPLES OF FRESH WATER PIPING.
MAIN SALON
BELOW IS A VIEW OF MAIN SALON FROM AFT – ITS VERY EARLY IN ITS JOURNEY.

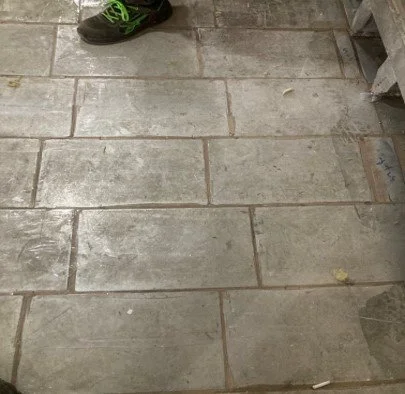

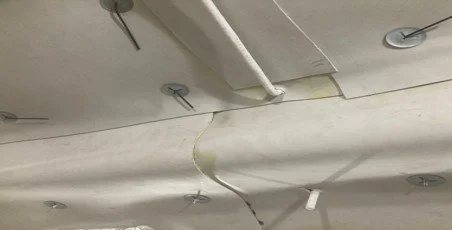

RIGHT: EARLY STAGES OF SOUND DAMPENING PROCEDURE.
OWNER VIEWING LOUNGE AREA

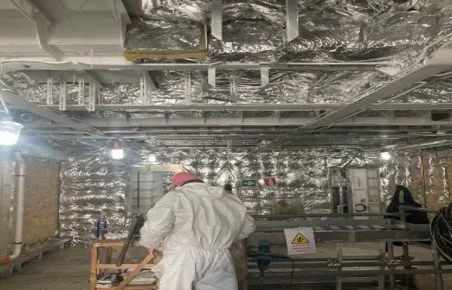

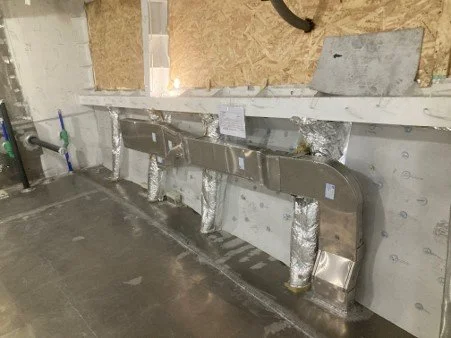

THE WORKS IN PROGRESS ARE MAINLY TOPGRADE SOUND INSULATION FINISHED WITH MAPFLEX AND MUCH AIR-CON DUCTING IN EVIDENCE.
BEACH CLUB AREA

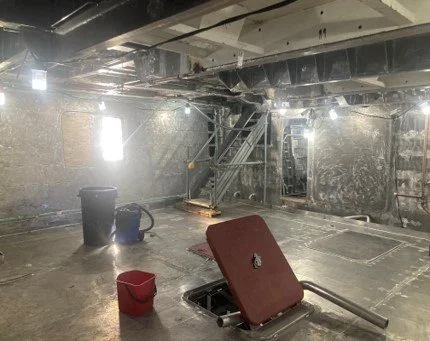

IMAGE BELOW WE HAVE THE BEACH CLUB FROM AFT.
IMAGE ON THE RIGHT: THE RUDDER STOCK PORT SIDE.
