Progress Report #06 | November 2022
Progress report on metal works on San Lorenzo 44m, project 157.
Location: Massa, Italy
Report was written by Harry Noonan, Project manager at Arrow Monaco on the 6th December 2022.
Introduction:
She is out of the shed and ready to move!
The vessel is now taking shape as the various block components have been welded together in preparation for the transfer to Marina Di Carrara which will take place on Monday 12th at 2200 hrs.
The Vessel will be transported through the streets late at night and then put in the water in preparation to be towed by Tug to the Shipyard at San Lorenzo .
Please note Arrow project manager is not permitted onboard for safety reasons during this process. It is for this reason all images on this report relate to Exterior of the Hull taken from Yard floor.
Arrow project manager Harry V Noonan will be present for the night transfer to Carrara on the 12th December.

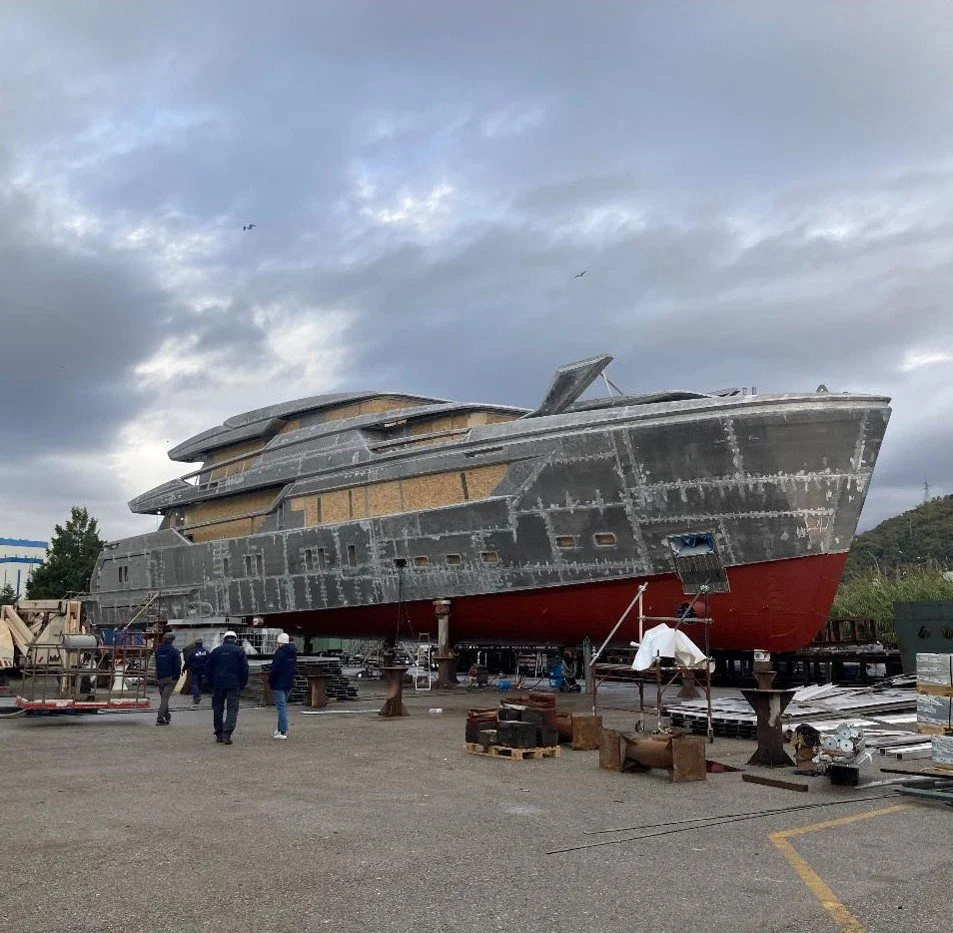

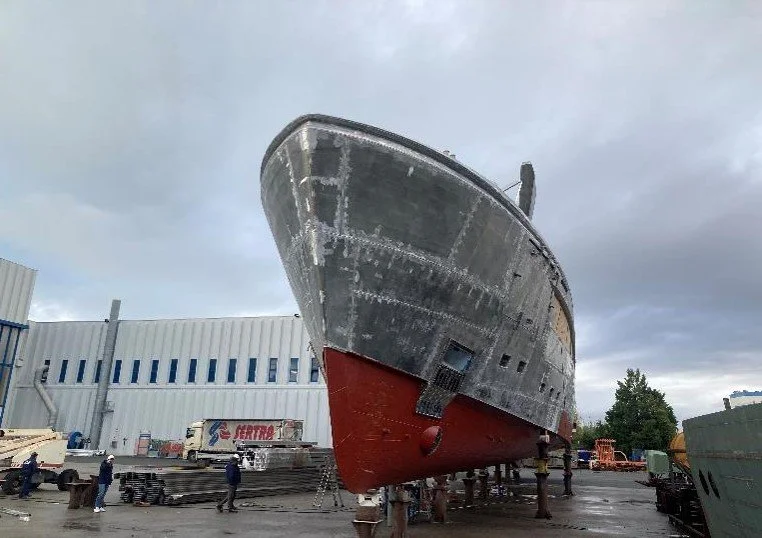

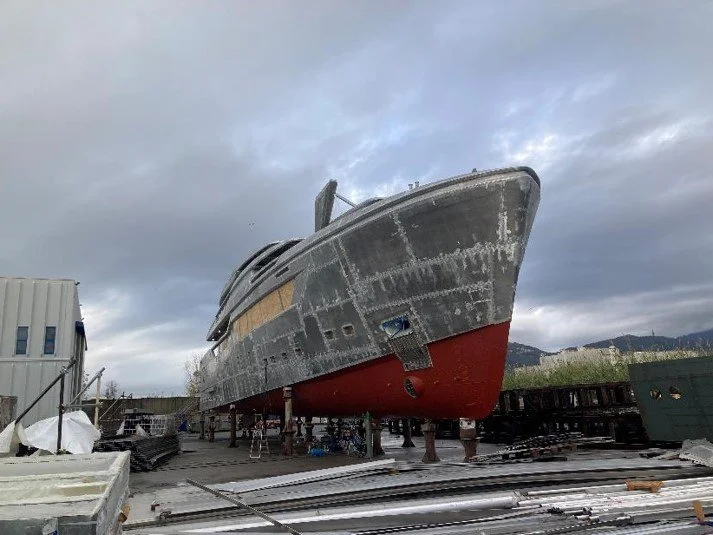

PORT AND STARBOARD ASPECT OF THE VESSEL ON THE BLOCKS

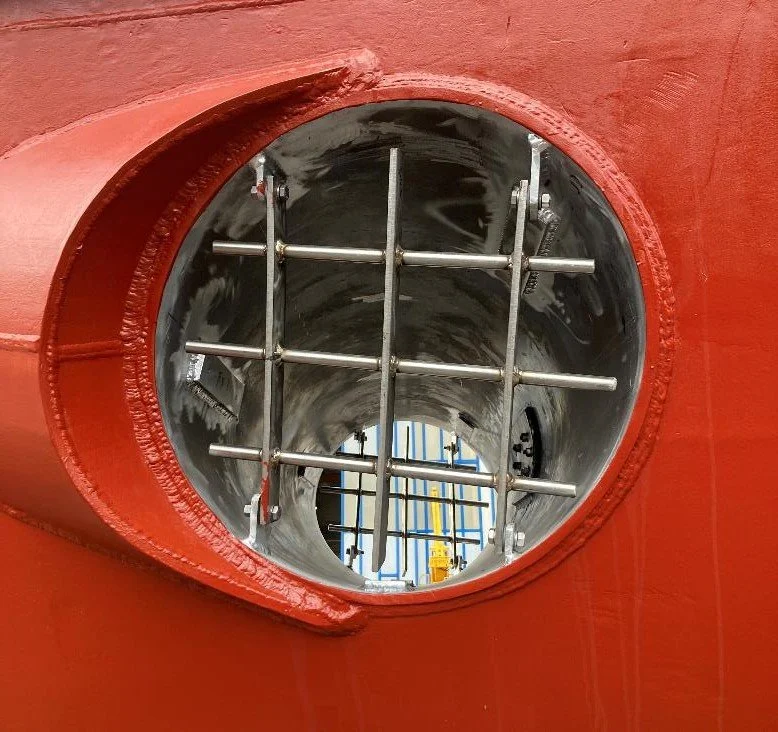

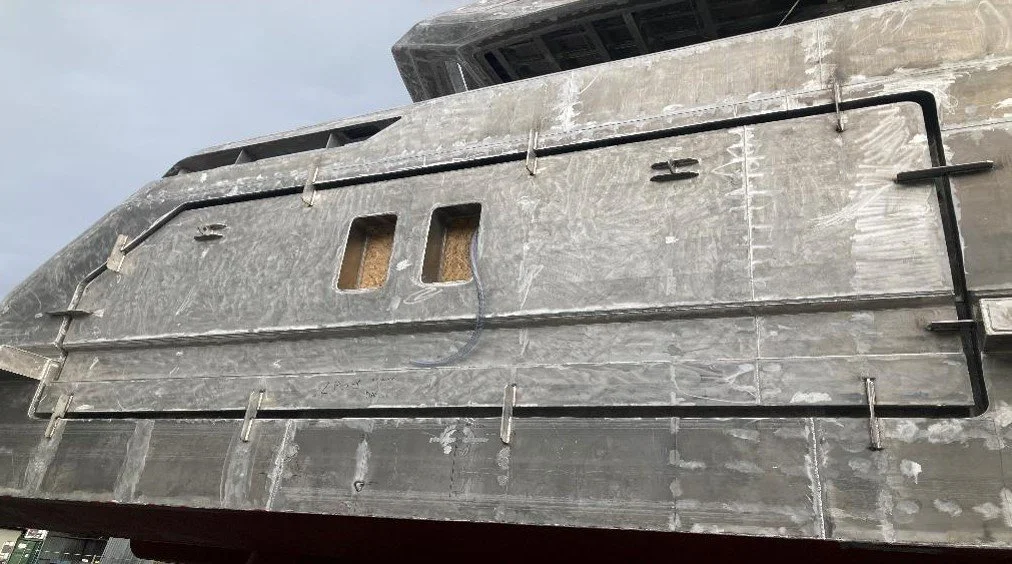

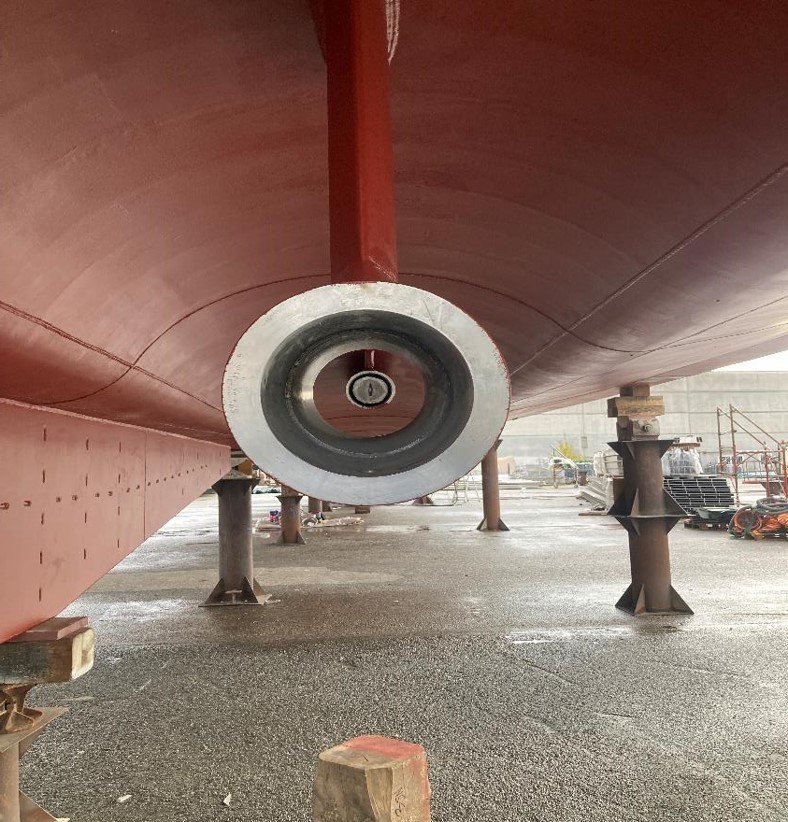

BOW THRUSTER PROTECTION AND BEACH CLUB DOOR WELDED IN PLACE
EXAMPLES OF THROUGH HULL FITTINGS
The red paint used throughout is Boero Delta 300 which is aluminium primer for all underwater areas.

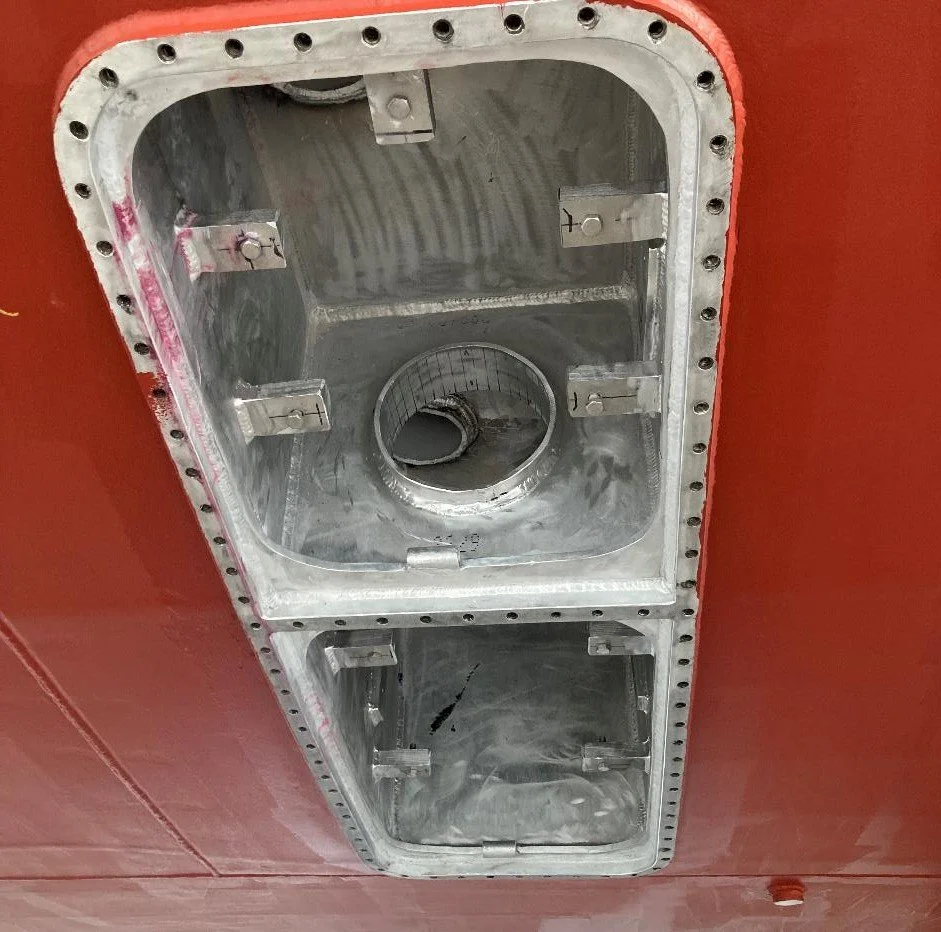

Image to the right is the Mains Sea chest opening .

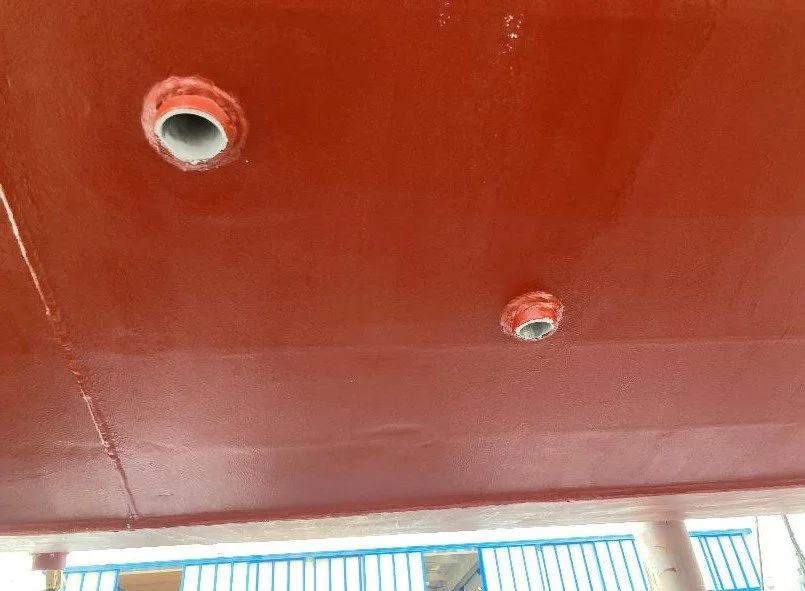

Below: Doppler log and sounding transducer holes.
EXAMPLES OF TOP QUALITY WELDING ON HULL
Image on right the illustrates decent welding finish.

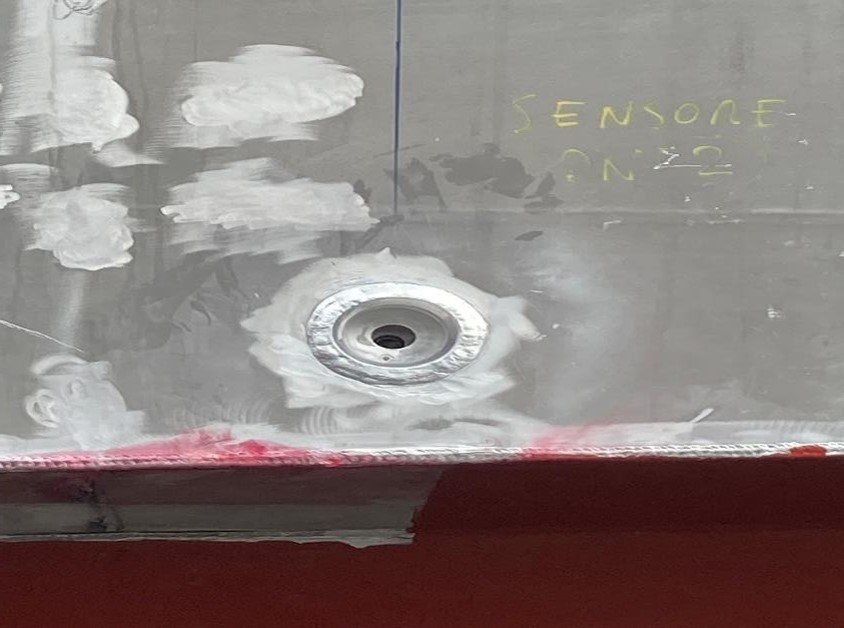

Image below is another example of quality welding on Cathelco outlet fitting .

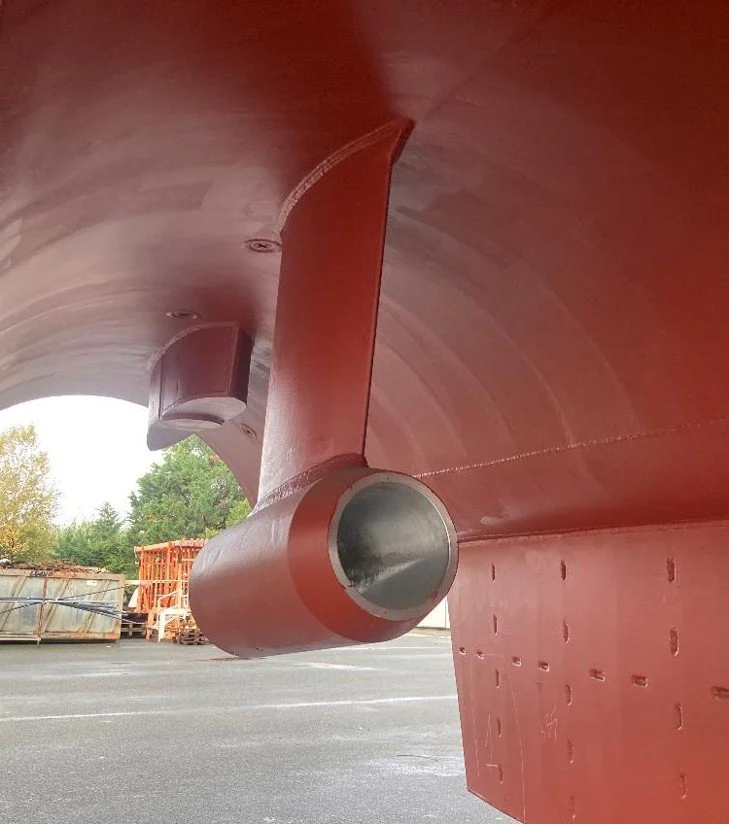

AFT AND FORWARD ASPECT OF STARBOARD P BRACKET

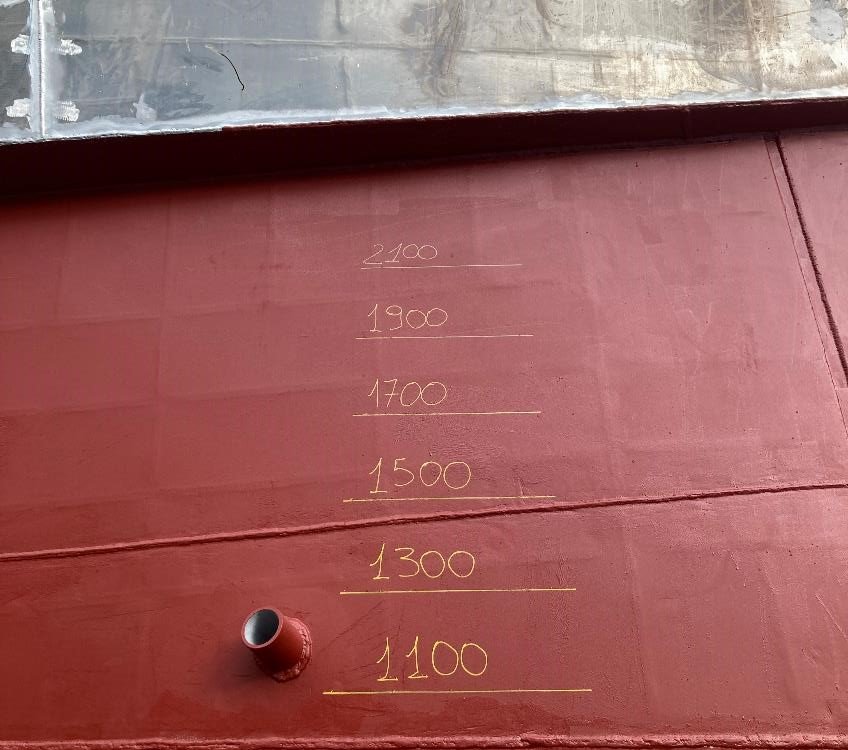

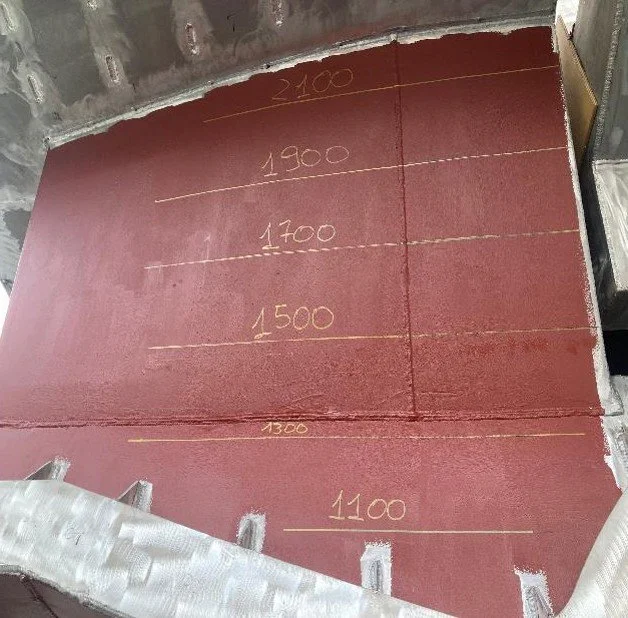

DRAFT LINES
Outline of forward draft lines on bow and stern areas.
This marks will eventually be clearly visible on highly finished polished Inox Stainless steel plates.

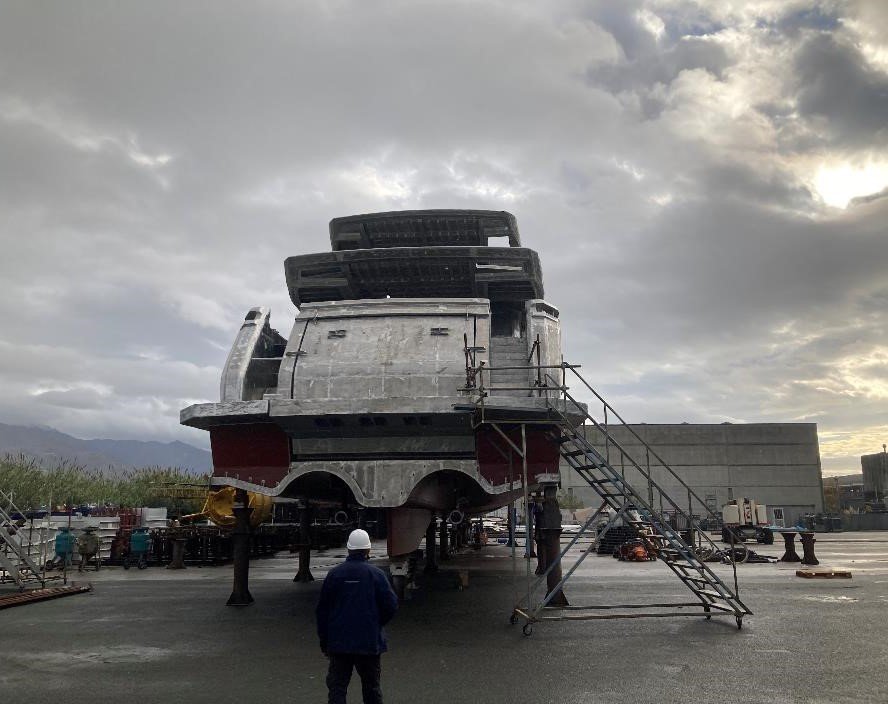

SWIMMING PLATFORM AND AFT END OF VESSEL

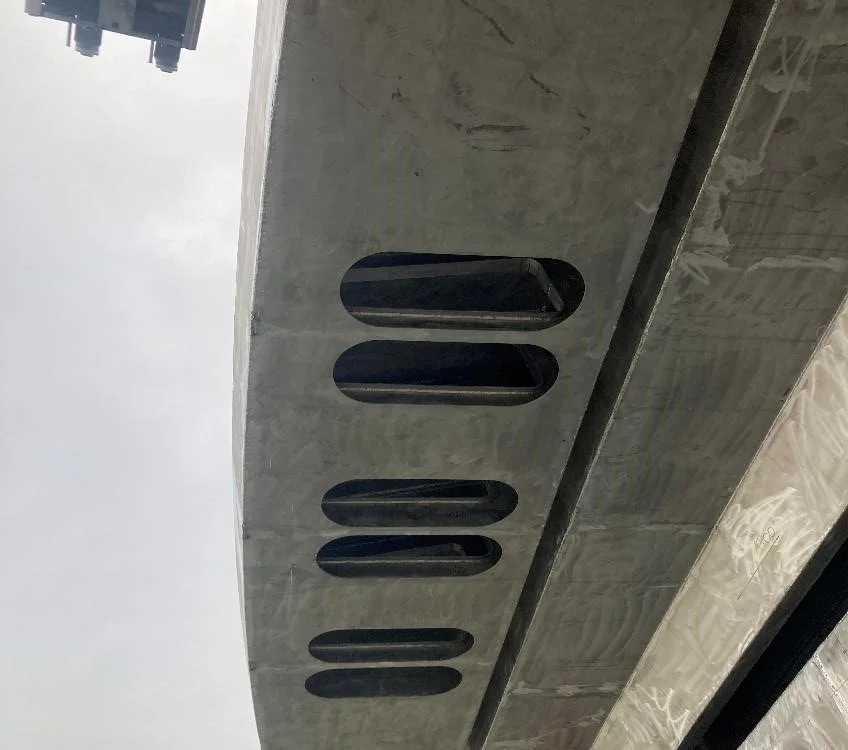

The void areas on the underside of the swimming platform are in fact a clever design to reduce pressure on this area from the seawater . See image on the right
CONCLUSION OF PICTURE REPORT
The Vessel is now at a very interesting period in its
journey to becoming a Boat.
Once the move to the Shipyard at San Lorenzo is
complete and the vessel hauled into a shed , there
will be huge strides in production achieved.
It goes from being a cold aluminum Block to the
beginnings of a superyacht through much outfitting,
effort and hard work
