Progress Report #11 | Q3 2023

JULY 2023

Arrow Monaco has been engaged to review the status and quality of the build of the new build Mangusta 104 hull number 5.

The outfitting is taking place at the Mangusta facilities in Viareggio.

The finished vessel will have the following arrangement:

And the following specifications:

CONSTRUCTION

HULL: SINGLESKIN COMPOSITE

SUPERSTRUCTURE: SANDWICH COMPOSITE

DIMENSIONS

LENGTH OVERALL: 31.80 M / 104'3''

BEAM: ~ 7.1 M / 23'3''

MAX DRAFT: ~ 1.5 M / 4'11''

DISPLACEMENT AT FULL LOAD: ~ 120 T / 264,560 LBS

DISPLACEMENT AT HALF LOAD: ~ 110 T / 242,500 LBS

GROSS TONNAGE: < 200 GT

TANK CAPACITY

FUEL CAPACITY: ~ 10,500 L / 2,770 US GALS

WATER CAPACITY: ~ 1,600 L / 425 US GALS

PROPULSION

MAIN ENGINES:   2 x MTU 16V 2000 M96L 2600 HP @ 2450 RPM

TRANSMISSION:   2 x WATERJETS KAMEWA S63-4

STABILIZERS:   ZERO SPEED AND UNDERWAY

PERFORMANCE

MAX SPEED HALF LOAD:   ~ 35 KNOTS

CRUISING SPEED HALF LOAD:   ~ 25 KNOTS

RANGE AT CRUISING SPEED:   ~ 370 NM

ACCOMMODATION

GUESTS:   UP TO 10 IN 4 CABINS

CREW:   4 IN 2 CABINS

DESIGNER

EXTERIORS:   LOBANOV DESIGN / OVERMARINE GROUP

INTERIORS:   LOBANOV DESIGN / OVERMARINE GROUP

INTRODUCTION

Technical manager Matthew Wood and Project manager Harry Noonan were periodically on-site in July 2023.

 The points below give an accurate overview of the progress for the month of July.

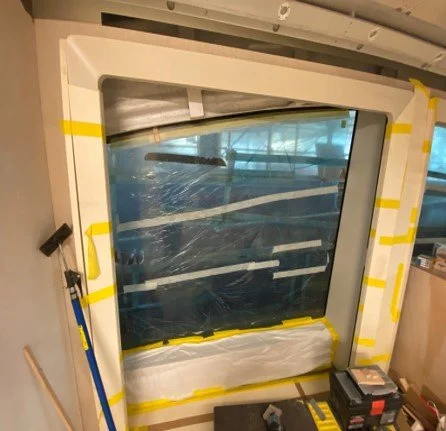

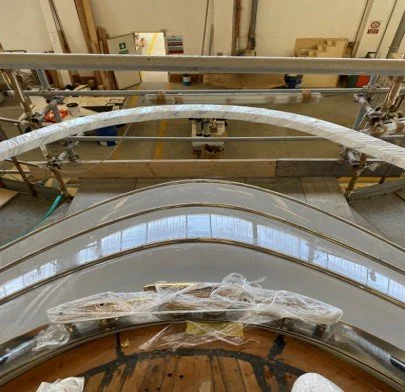

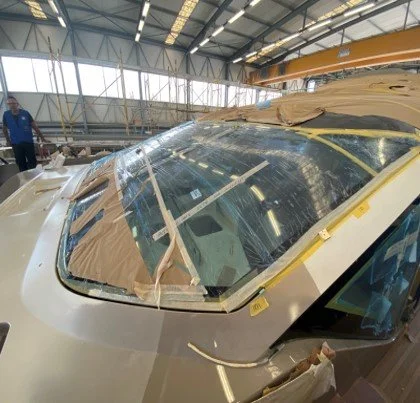

•Glass installation 100% complete.

•Launch now scheduled for the end of August.

•Interior carpentry will be 95% complete for the launch.

•Teak is laying is 100% complete.

•Toilets and sinks will be installed during July.

•Di-Bond installation in the ER is 100 % complete.

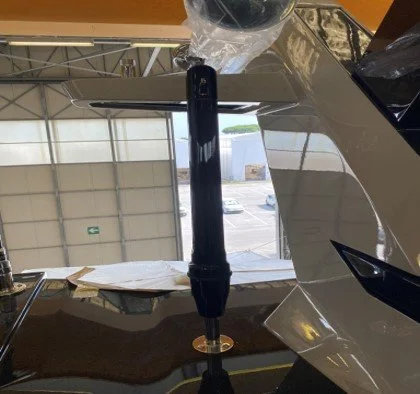

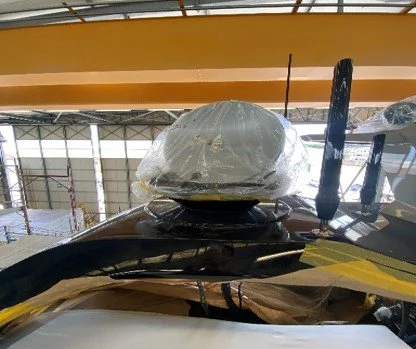

•Sat comm and mast installations in place and painted.

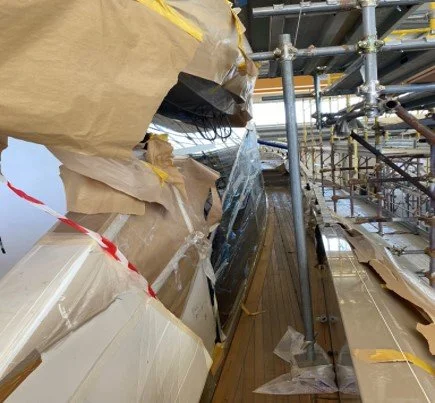

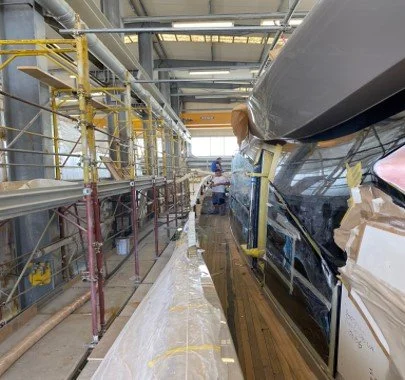

SIDE DECKS

PAINTED HULL AND WATERLINE

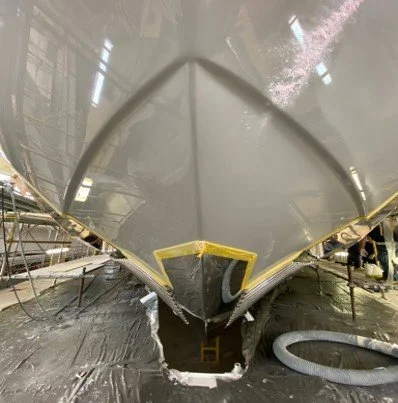

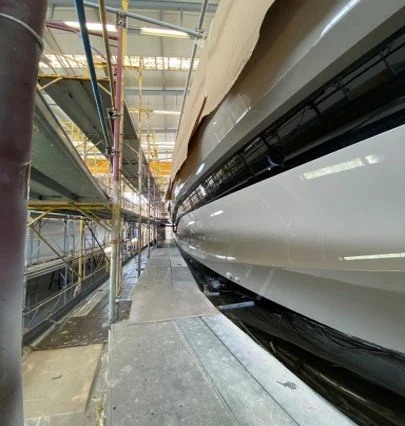

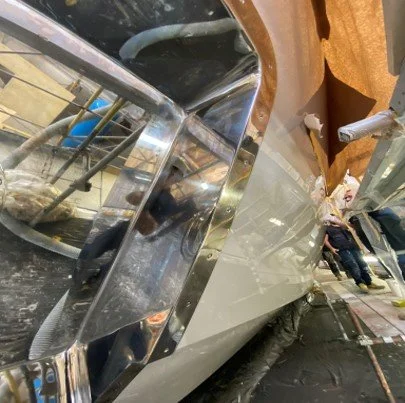

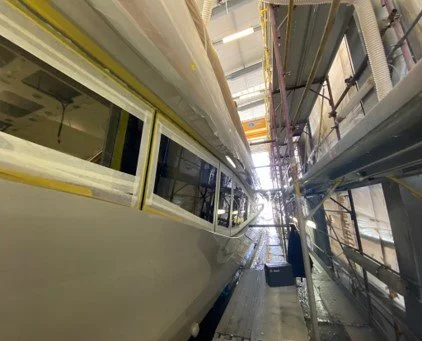

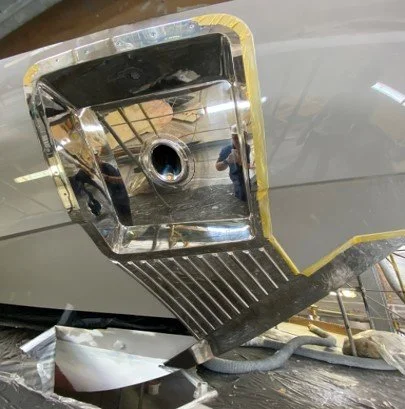

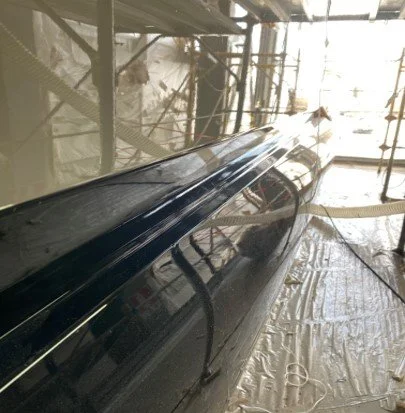

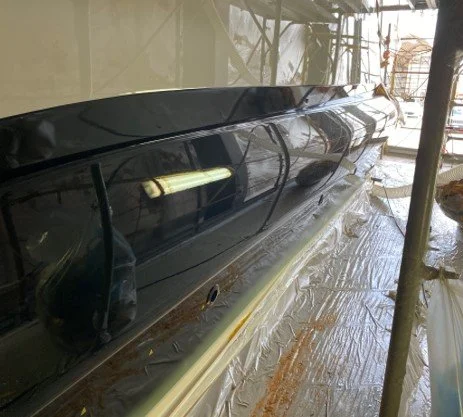

The following images show the painted hull, waterline and anchor plates.

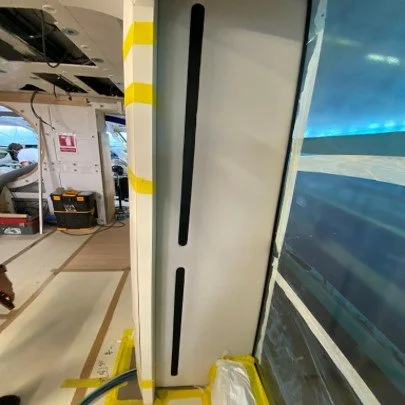

AFT DECK SALON DOOR

Below: view looking forward into salon.

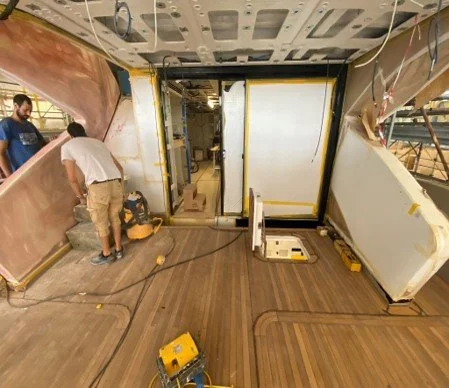

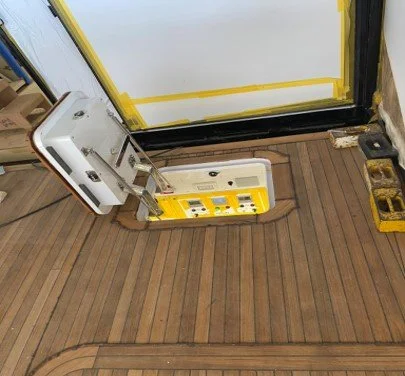

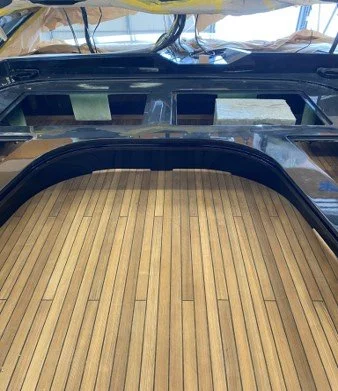

Right: Aft deck completed teak.

AFT DECK

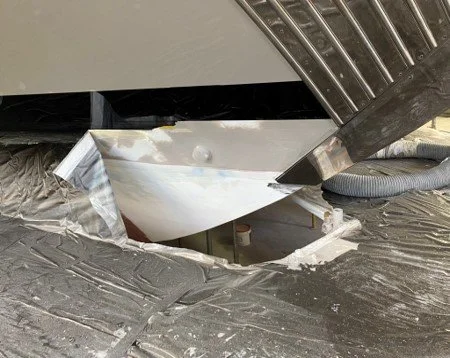

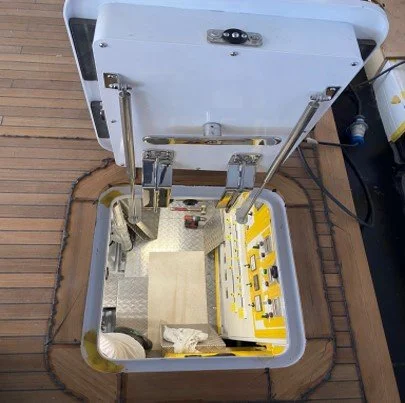

Engine room access hatch and laid teak.

MAIN SALON

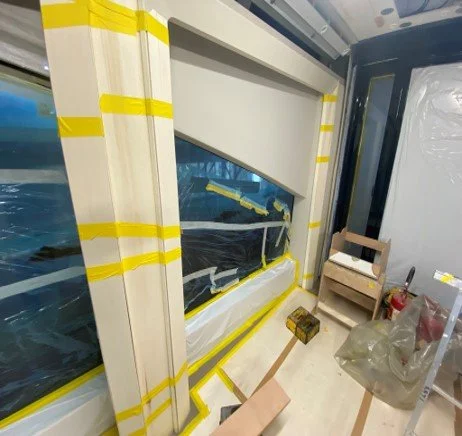

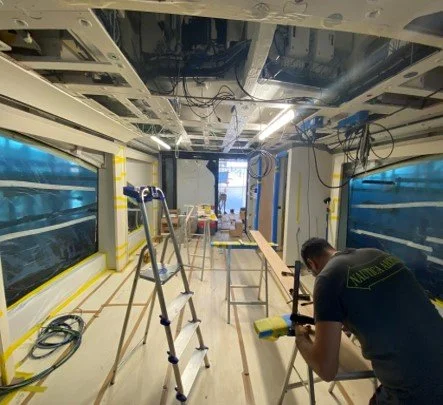

Joinery and outfitting continues

OWNER CABIN

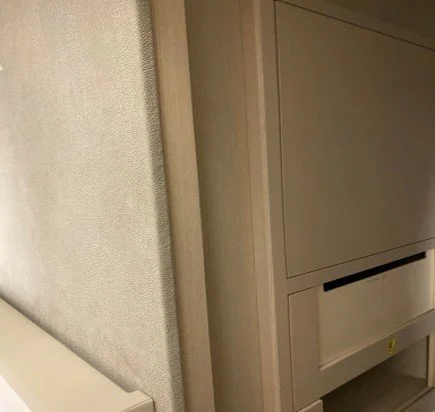

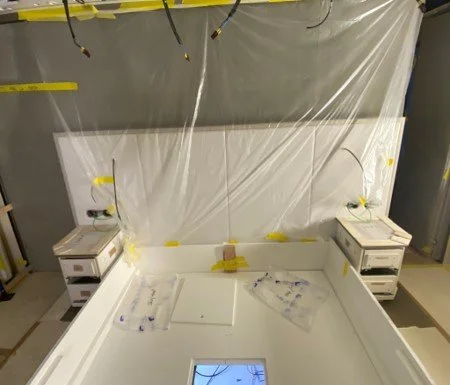

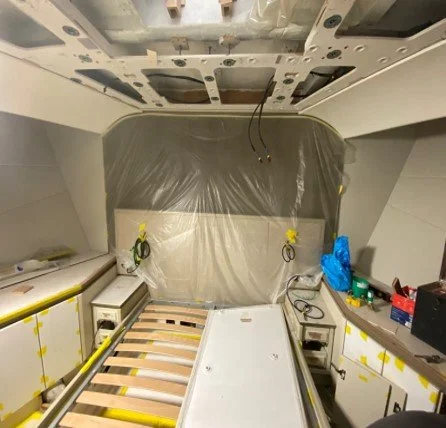

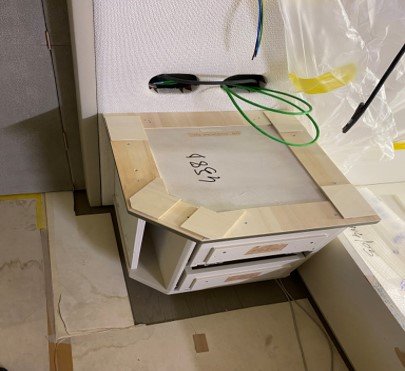

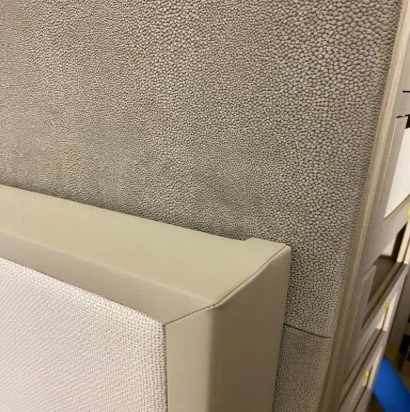

Bedhead and various wall fabrics in place and protected.

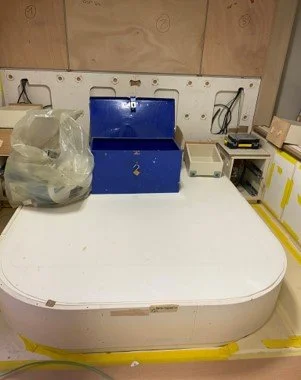

LOWER DECK/MASTERCABIN

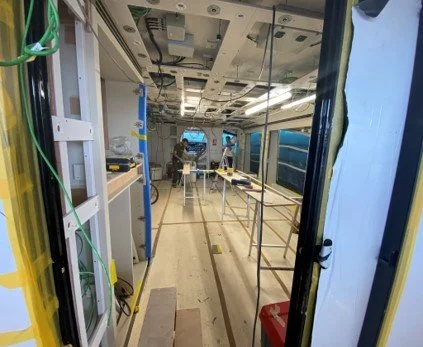

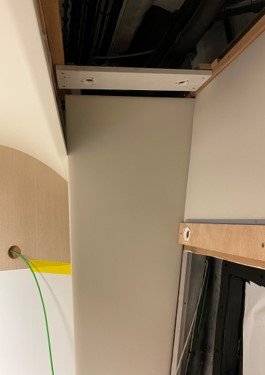

LOWER DECK MASTER/VIP/GUEST CABINS

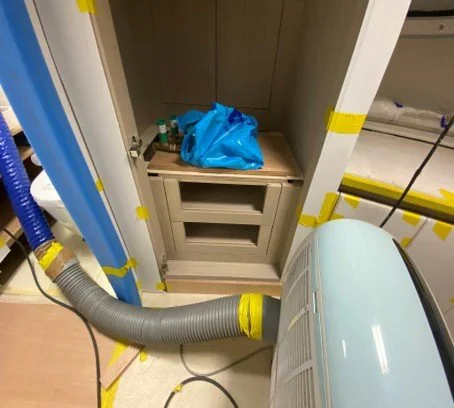

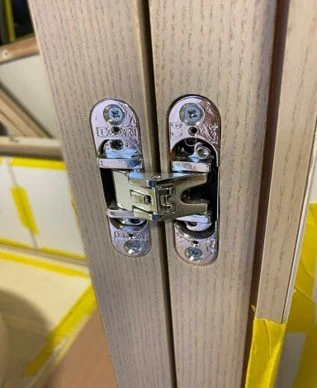

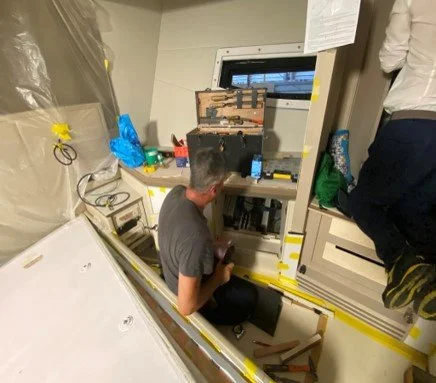

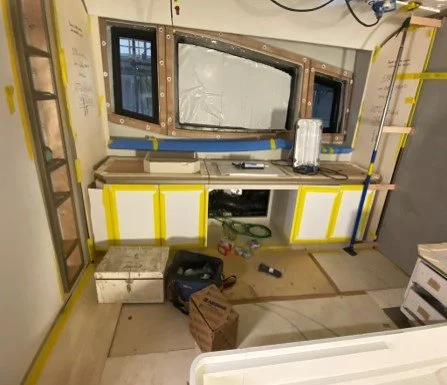

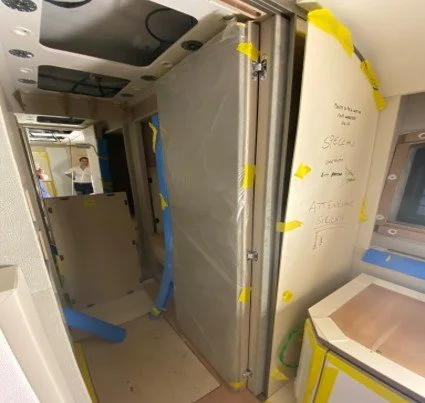

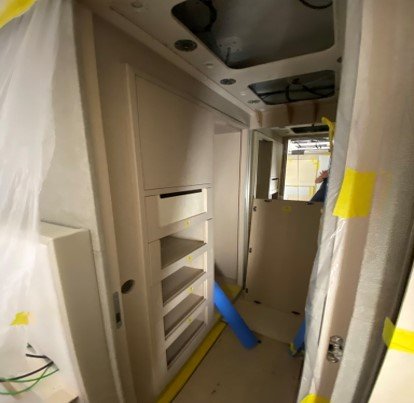

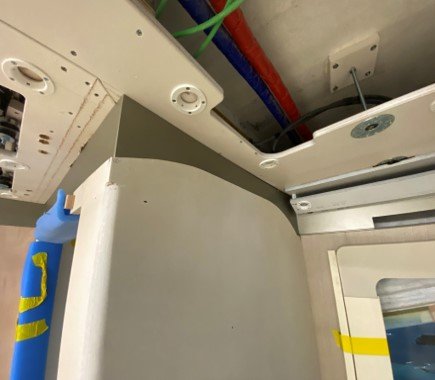

Joinery-Outfitting and carpentry at an advanced stage. This will really come to shape over the following weeks.

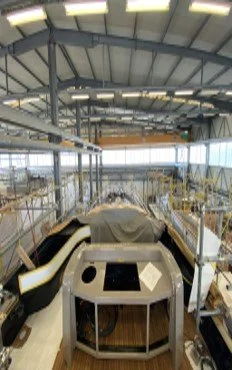

FOREDECK

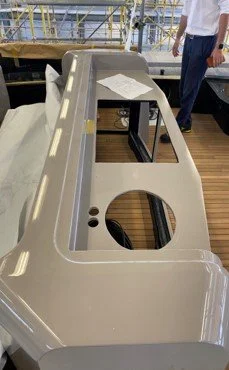

VESSEL EXTERIOR FLYBRIDGE

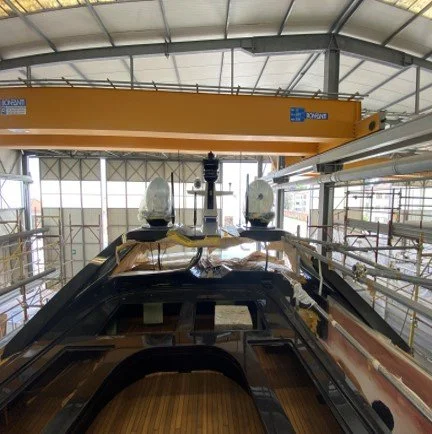

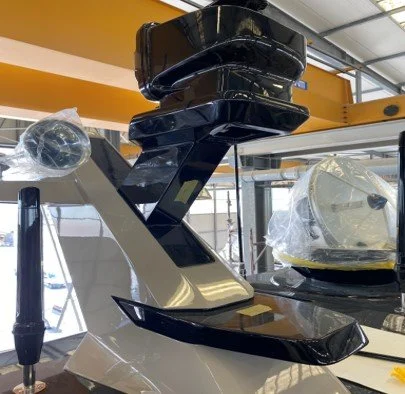

The following images show advances in the mast/rollbar area.

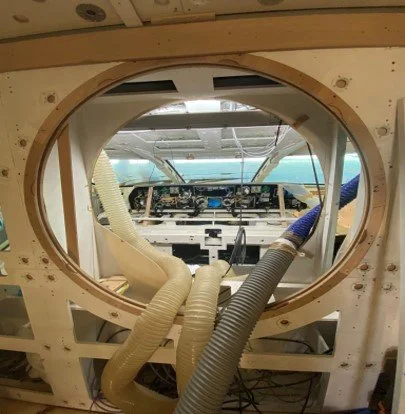

ENGINE ROOM

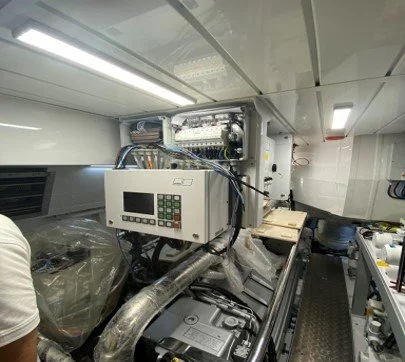

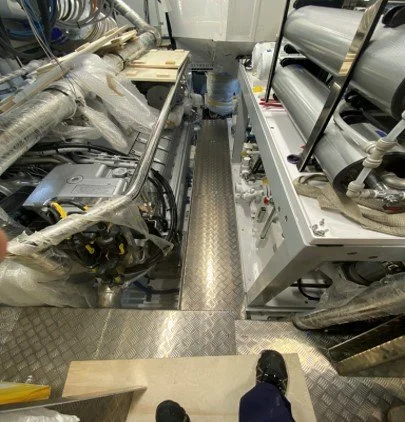

Checker plates in position and most critical machinery in place.

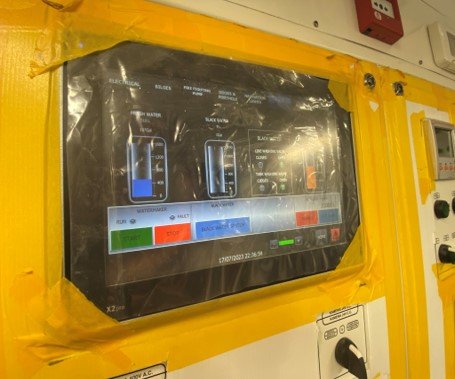

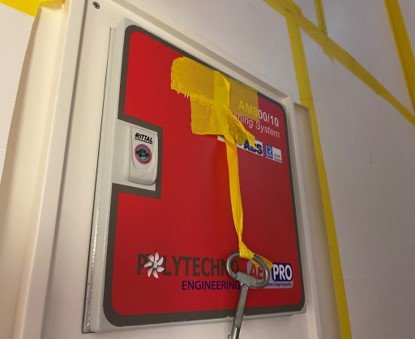

Safety panels and Ship monitoring system working
