Progress Report #06 | Q1 2023
FEBRUARY 2023
Arrow Monaco has been engaged to review the status and quality of build of the new build Mangusta 104 hull number 5.
The outfitting is taking place at the Mangusta facilities in Viareggio.
The following report illustrates the status of the build as of the 28th February when the vessel was visited.
The finished vessel will have the following arrangement:
And the following specifications:
CONSTRUCTION
HULL: SINGLESKIN COMPOSITE
SUPERSTRUCTURE: SANDWICH COMPOSITE
DIMENSIONS
LENGTH OVERALL: 31.80 M / 104'3''
BEAM: ~ 7.1 M / 23'3''
MAX DRAFT: ~ 1.5 M / 4'11''
DISPLACEMENT AT FULL LOAD: ~ 120 T / 264,560 LBS
DISPLACEMENT AT HALF LOAD: ~ 110 T / 242,500 LBS
GROSS TONNAGE: < 200 GT
TANK CAPACITY
FUEL CAPACITY: ~ 10,500 L / 2,770 US GALS
WATER CAPACITY: ~ 1,600 L / 425 US GALS
PROPULSION
MAIN ENGINES: 2 x MTU 16V 2000 M96L 2600 HP @ 2450 RPM
TRANSMISSION: 2 x WATERJETS KAMEWA S63-4
STABILIZERS: ZERO SPEED AND UNDERWAY
PERFORMANCE
MAX SPEED HALF LOAD: ~ 35 KNOTS
CRUISING SPEED HALF LOAD: ~ 25 KNOTS
RANGE AT CRUISING SPEED: ~ 370 NM
ACCOMMODATION
GUESTS: UP TO 10 IN 4 CABINS
CREW: 4 IN 2 CABINS
DESIGNER
EXTERIORS: LOBANOV DESIGN / OVERMARINE GROUP
INTERIORS: LOBANOV DESIGN / OVERMARINE GROUP
INTRODUCTION
Attached is a series of images relating to the works in progress on the Vessel.
Visits were carried out by Arrow at Mangusta facility: Harry Noonan and Matthew Wood.
• The Wiring is ongoing but actually 100% in place in forward guest areas.
• Fairing work on the exterior is ongoing as well as evidence of first coats of topcoat –this is an excellent development and this first coat is not only a filler coat but is used to sand back and iron out imperfections-The chosen Hull colour looks great.
• The teak on the main deck is laid.
• Plumbing pipework is continuous at this stage.
• Main engines in place for pre-alignment. They will be removed for further fitting and framework in 2 weeks’ time and put back in place permanently in May 2023.
• Guest areas and Boss cabins are joineries orientated. It is pre-joinery at this stage so we await images of real progress over the following weeks.
STERN - BELOW THE WATER LINE
Below: Stainless plates bonded on hull in preparation for installation of Kamewa “ nozzles”

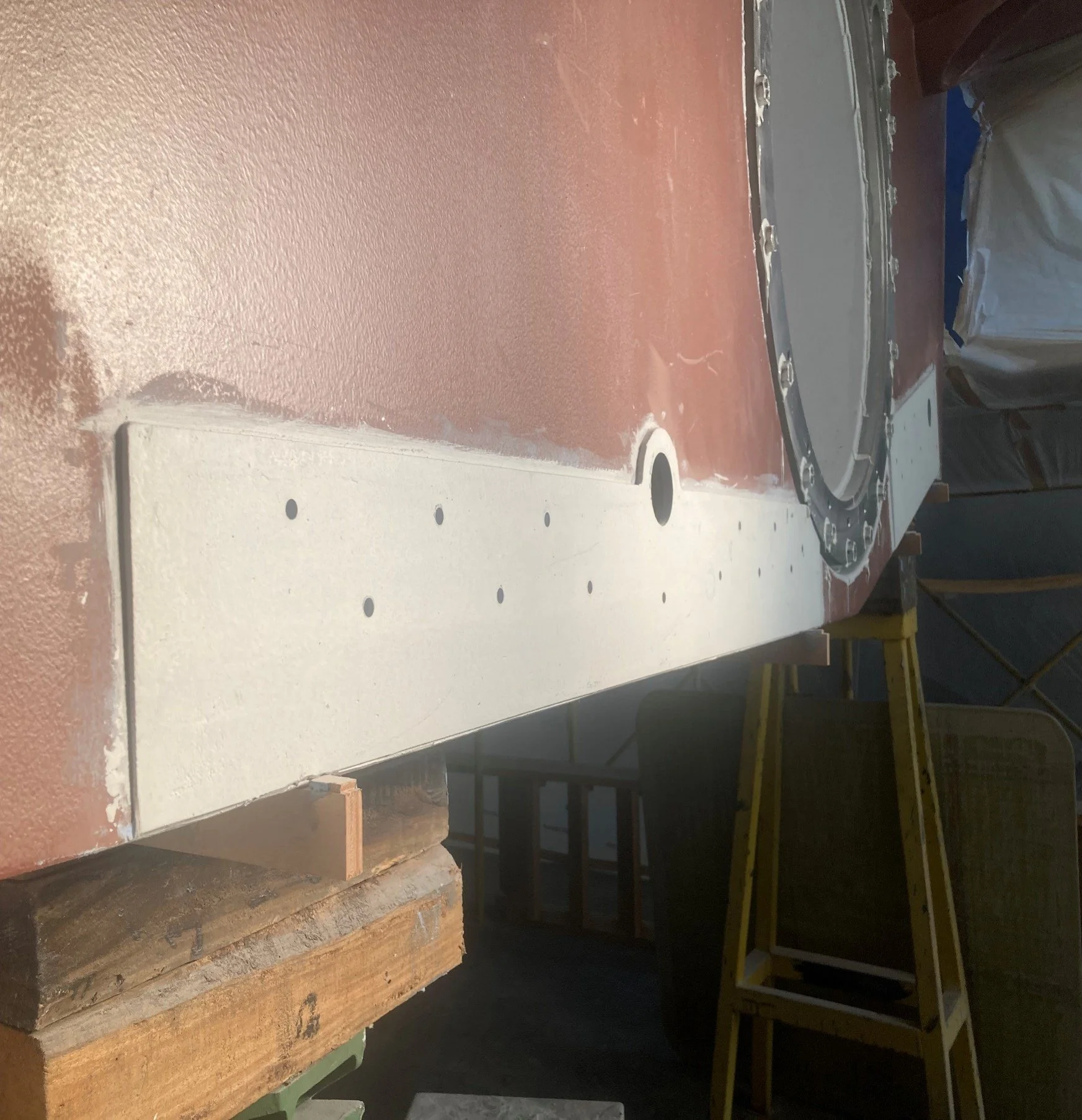

Right: Humphree’s interceptor plate 1
STERN

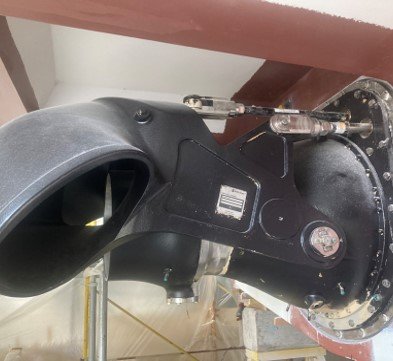

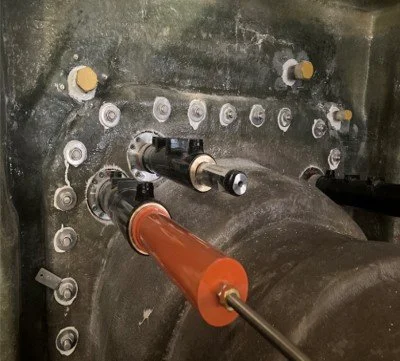

Kamewa Nozzles now in place.
STERN AREA

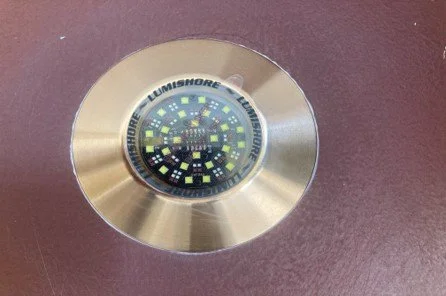

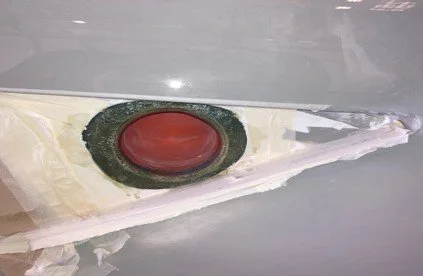

Below: example of under water lights installation.

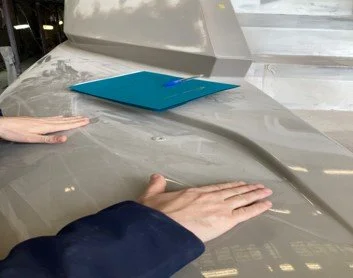

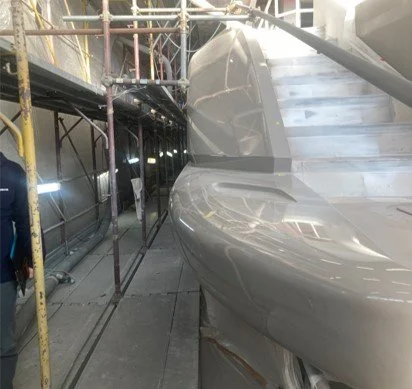

Right: Top coat applied-this is an early coat which gives a nice image of what the overall finish of the port quarter will eventually look like.
HULL
Below : Moulded recess for mooring cleat. Upgrade requested free of charge for a more robust load bearing spec. It will look exactly like original spec.
Right : Galley extraction duct on Starboard side-not finished.
TENDER GARAGE

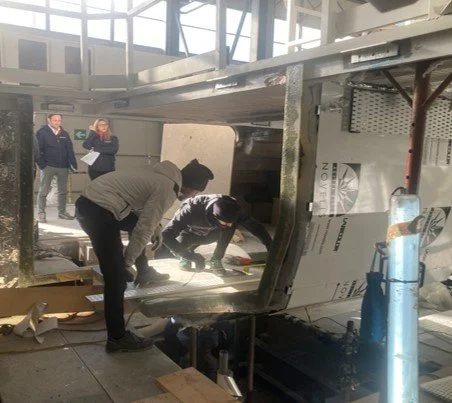

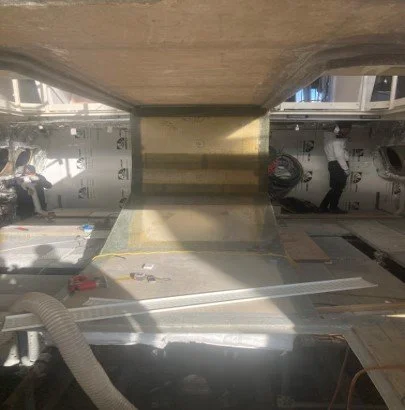

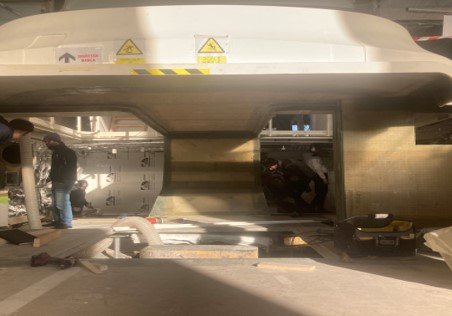

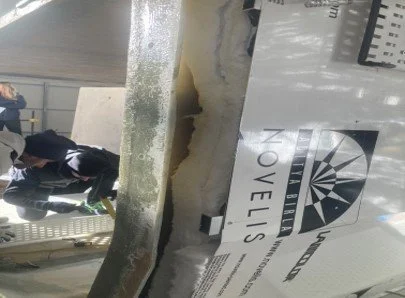

Below : View from swimming platform. Garage is in very early stages of construction.
Right : Moulded wall which protrudes into ER which enables the Williams tender launch-clever design.
TENDER GARAGE CONTINUED
Below: View of tender garage/ER partition bulkhead.
Note: robust FRP application and correct insulation.
Right: view from ER.
ENGINE ROOM

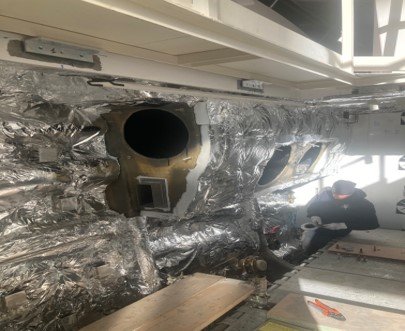

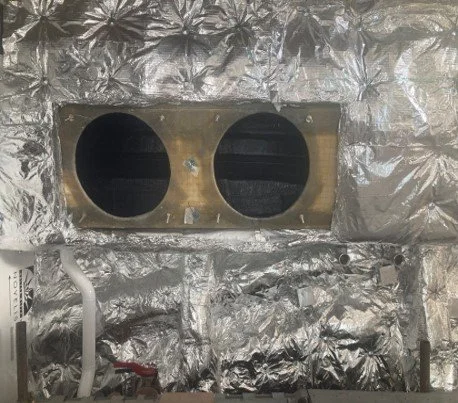

GRP casing ER ventilation port side
ENGINE ROOM CONTINUED

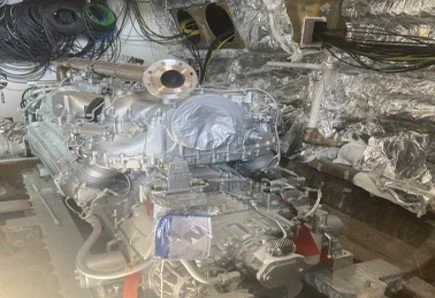

Main engines in place for pre-alignment of hydraulics, exhaust and shaft alignment
Main engines will be removed again in 2 weeks and put in final position at the end of May.
FOREDECK

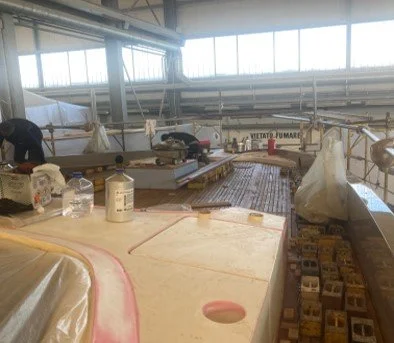

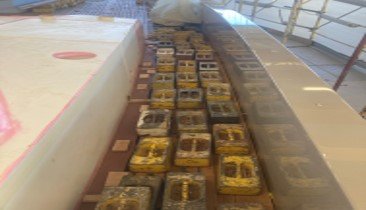

Below: Teak work on foredeck and side deck.
Right below: teak thickness measured at 12mm.
FOREDECK CONTINUED

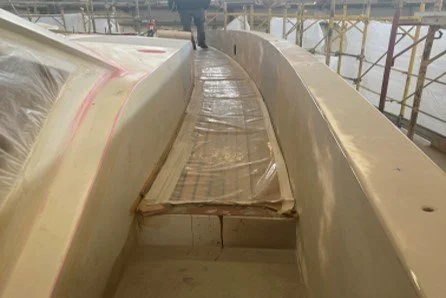

Below: Teal work laid, caulked and protected until final sanding.

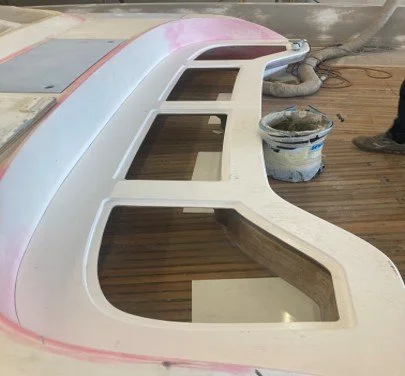

Right: fore deck lockers –hinged lockers requested free of charge.
VIP CABINS / GUEST AREA

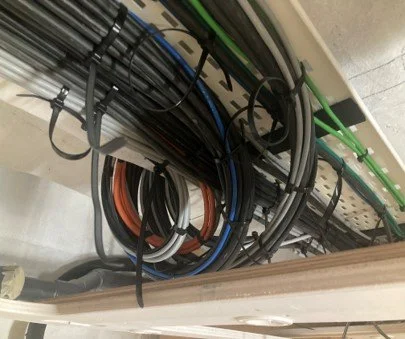

Below: Wiring finished above deckhead panels

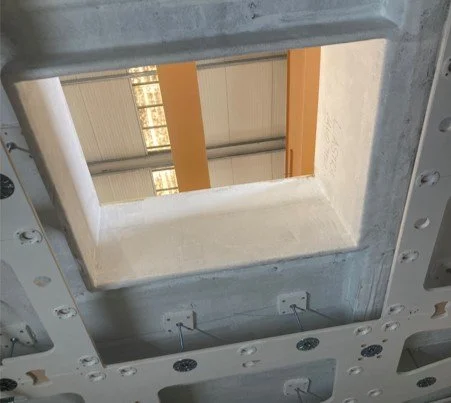

Right: Escape hatch VIP

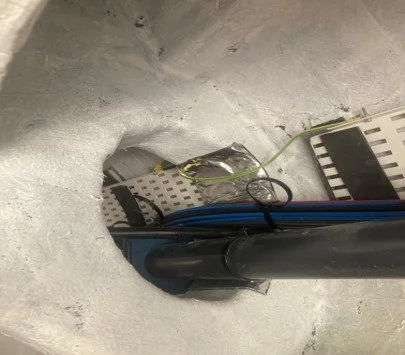

PIPE WORK THROUGH BEAMS

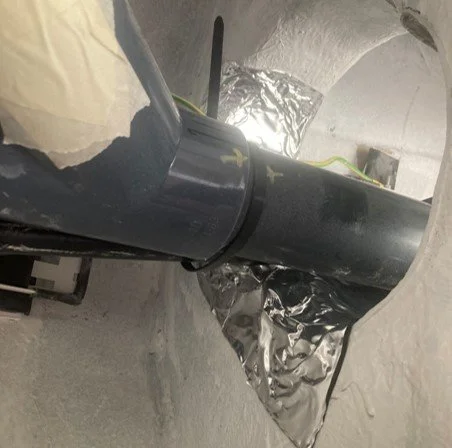

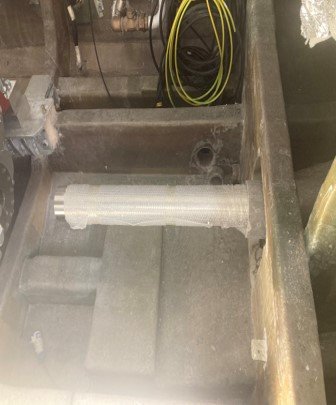

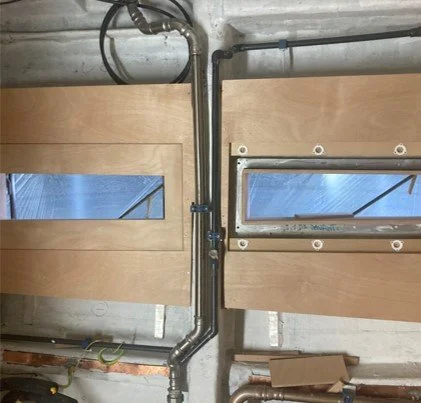

Images show pipework practices we are monitoring. We are in constant discussion with yard regarding quality of installation.
GALLEY / CREW AREA

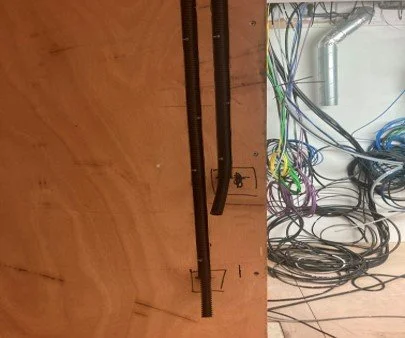

Joinery and wiring continuous in lower deck.
