Progress Report #05 | Q1 2023

JANUARY 2023

 Below is a series of images relating to the works in progress on the Vessel.

 Visits were carried out by Arrow Representatives at Mangusta facility: Harry Noonan and Matthew Wood.

  • The Vessel is at the stage where there is a huge emphasise on wiring, in fact the wiring at  is at 90% completion and the workmanship in this department has been excellent.

  • There is continued progress in the fairing work on the exterior as well as exterior lockers being worked upon.

  • There is much advancement in the fitting of deckheads with the ‘Fitlock’ system which is an efficient mechanism certainly compared to Velcro and staple guns which were used in the past.

  • Plumbing pipework is continuous at this stage.

  • Framework and hot-works continue in the Engine room and the weld quality is acceptable at this stage.

STARBOARD QUARTER/HULL SIDE

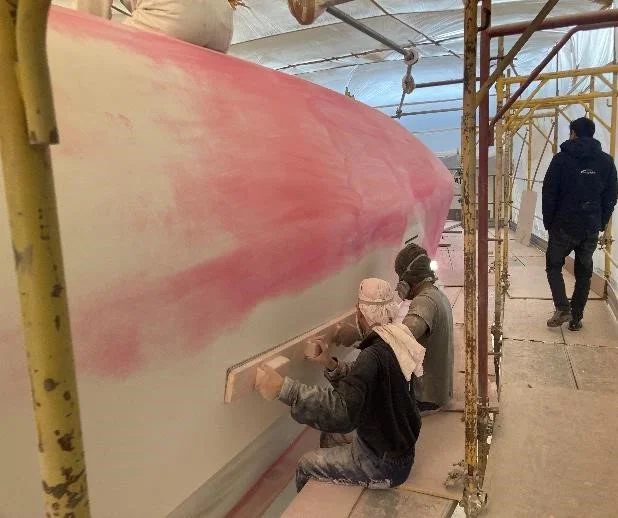

Left: Continued fairing work on quarters using SPY technique. This is prevalent around the exterior-good practice.

Right: Paint team longboarding Hull.

FOREDECK

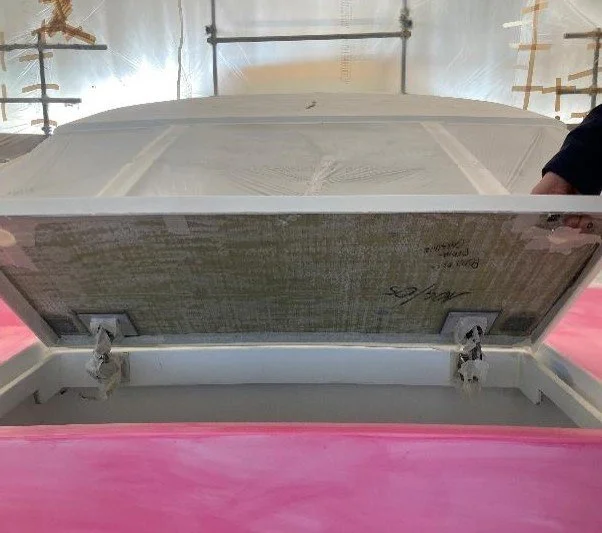

Left: work being carried out on lockers.

Right: inside of locker lid-hinges already in place.

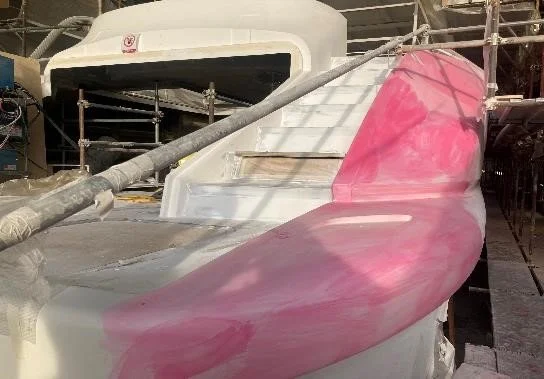

  FORWARD TOPSIDE/ FOREDECK

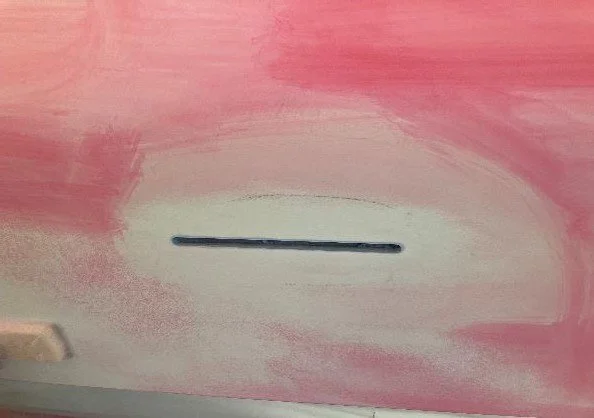

Left: The small opening amongst the pink ‘SPY’ is an extraction vent for  guest cabins.

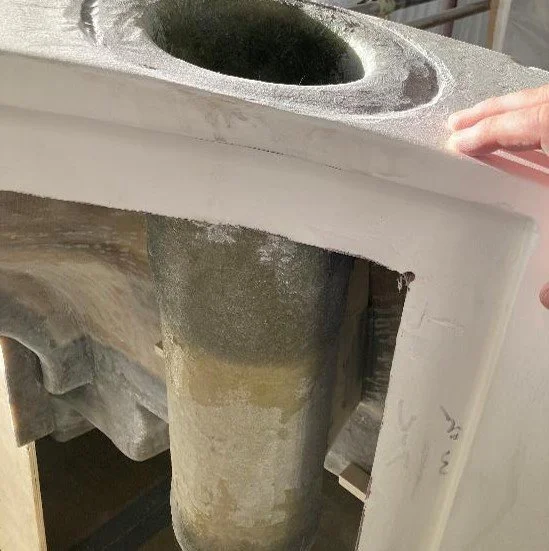

Right: Continued Fibre glass applications to reinforce the awning pole set up

  PIPEWORK AND OUTLET VALVES

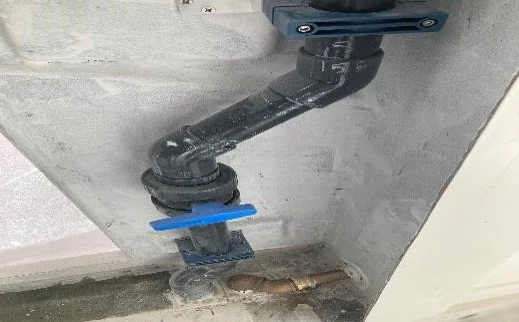

Left: Pipework and outlet valves for deck drainage and bilge water.

Right : Continued progress with pipework insulation throughout the vessel.

  PIPEWORK CONT’D

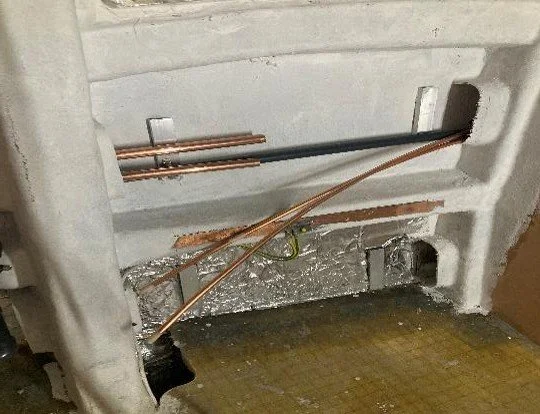

Left: Hot water Pipework at early stages.

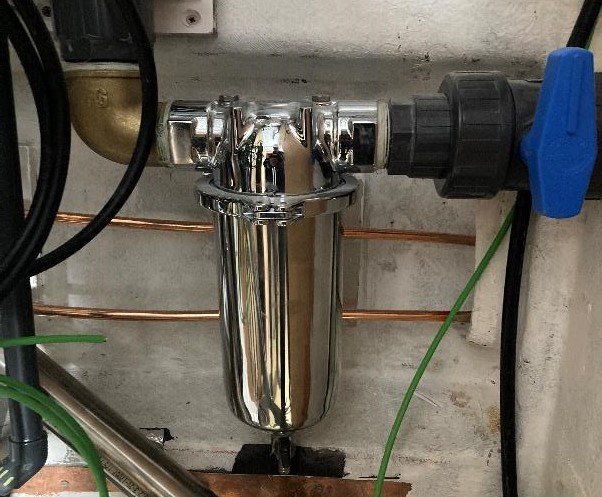

Right : Continued progress on odour filter installation.

 MAIN SALON DECK HEAD PANELLING

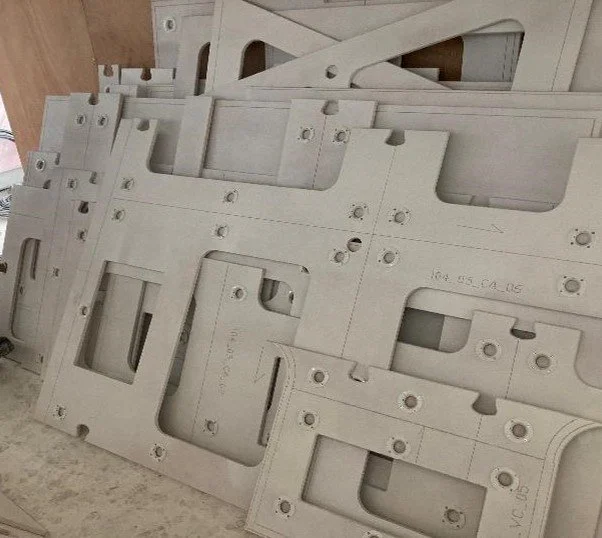

Below is a close up of the highly effective fitlock system and the image on the right is the deck heads stored and ready for their next stage .

ENGINE ROOM

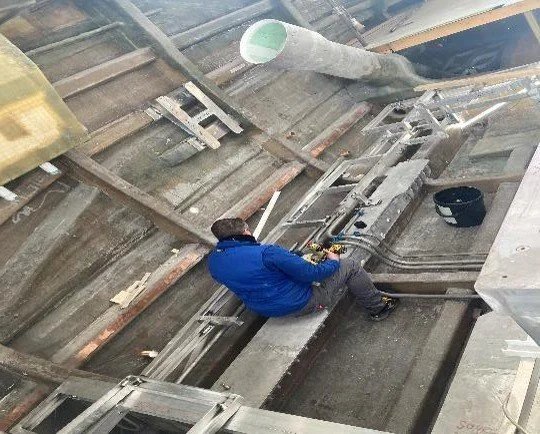

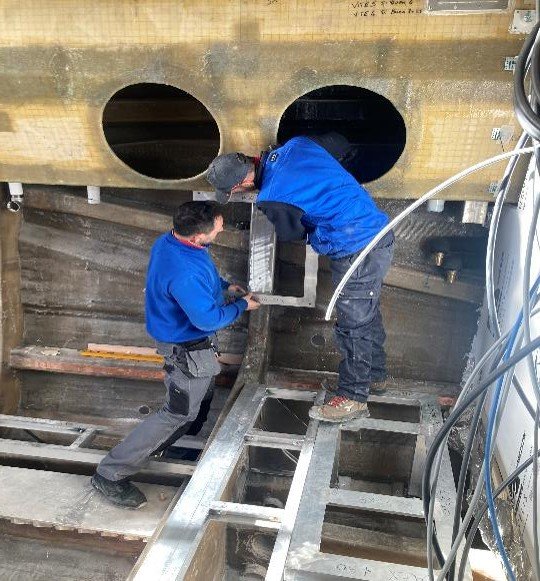

Ongoing metal work/frame work in the ER.

This is a methodical process involving much calibration and measurement.

ENGINE ROOM CONT’D

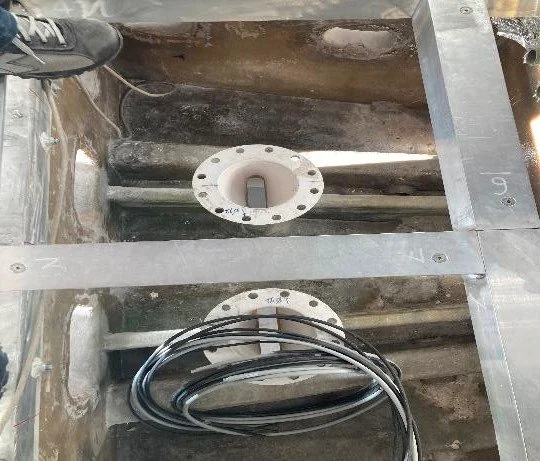

Left: Inserts for the sea-chest mechanism.

Right: Metal worker is preparing the genset base.

GALLEY WIRING

Left: One can clearly see the scope of wiring used and the neat usage of cable trays above.

Right: Cables going through an FRP non water tight bulkhead require this insert.

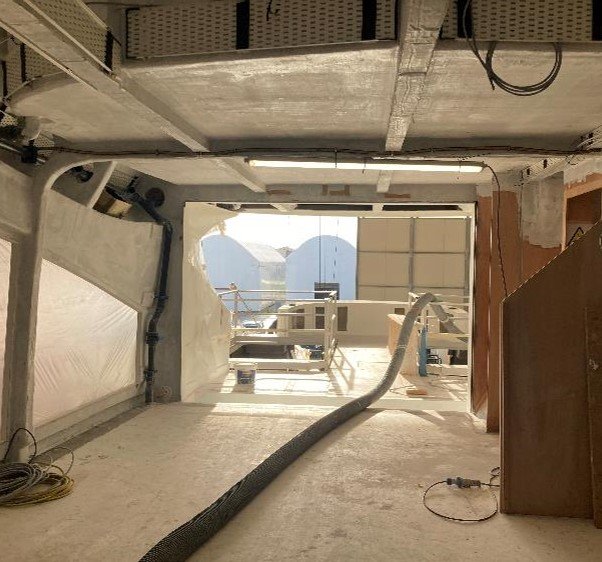

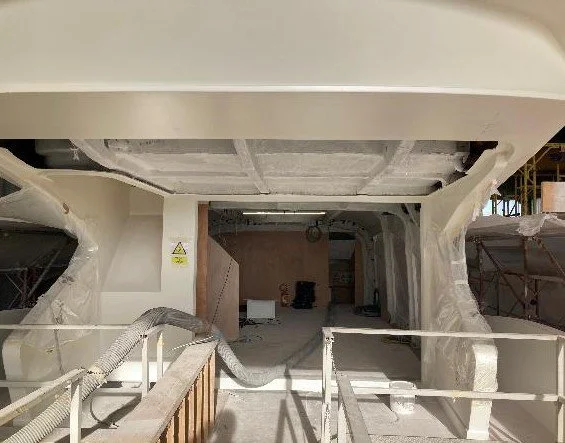

MAIN SALON ENTRANCE

Left: Salon from aft –note there is no access yet to upper deck.

Right: Salon view looking aft. Work in progress(WIP)
