Progress Report #03 | March 2023

Introduction

• 604 is currently in the hull and superstructure construction phase over two sites in Orhanlı and Tavasanli, Istanbul area Turkey.

• Orhanli is where the block construction phase of 604 is taking place as shown in the December report. Tavasanli has started on the erection of prefabricated blocks. The blocks will be continued to be transported to Tavasanli as they are completed.

• This report shows the current status of 604 for the month of January 2023 from both above locations with reference to the construction block drawing.

• The following shows block production taking place in Orhanlı.

• Clockwise from the front left of the drawing the following blocks are in construction numbers referenced from the below drawing.

• BT02, CI02, PC05, PC02, PC04, PC03, BT08, BT07, C107, BT03, CI03.

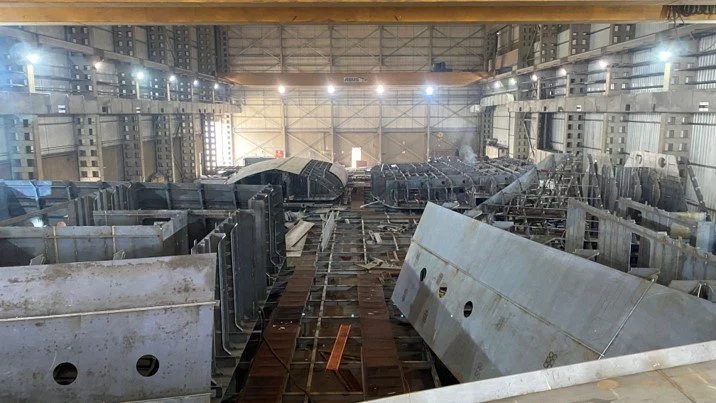

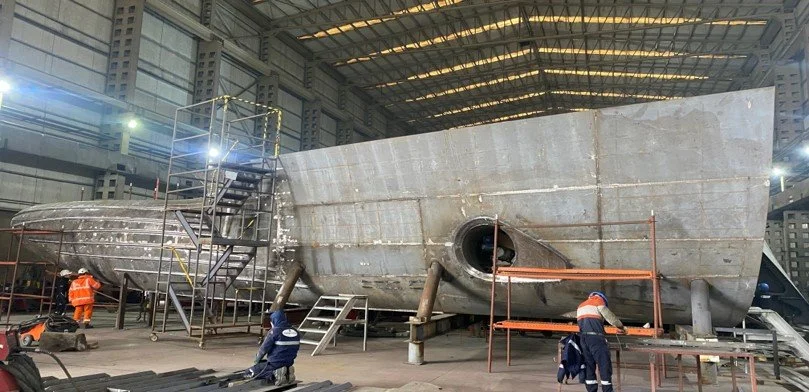

BLOCK PRODUCTION

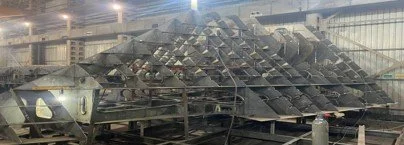

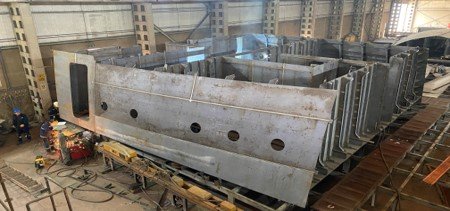

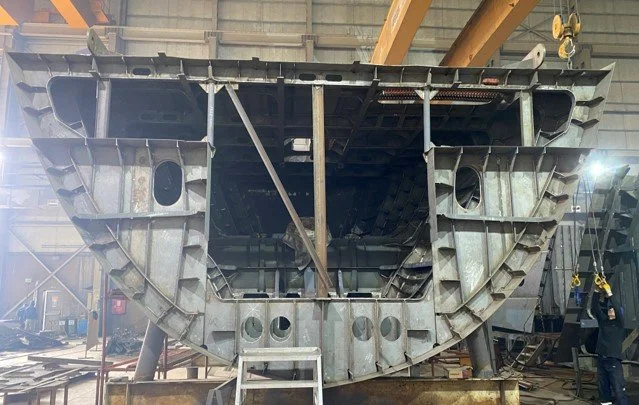

BLOCK PRODUCTION PC06,BT01,PC07,PC08,PC01 & PC08

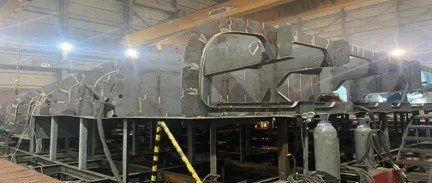

LR BLOCK ACCEPTANCE FOR  CI07,BT07,BT08

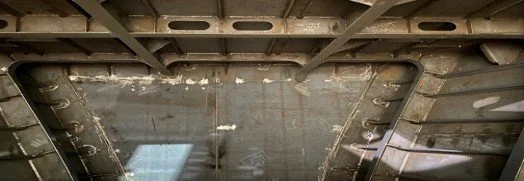

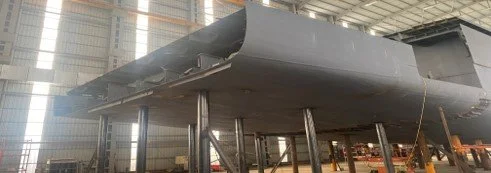

CI07,BT07 LOOING IN THE FORWARD DIRECTION

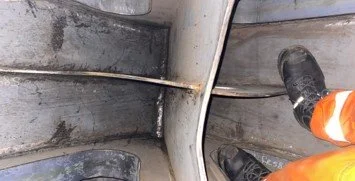

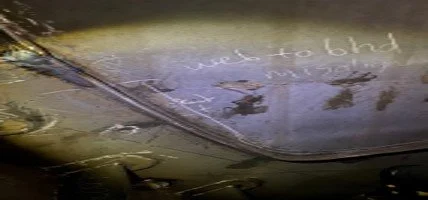

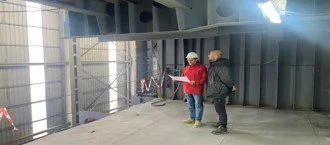

BLOCK INSPECTION DID FIND SOME CONTRUCTION FAULTS TO BE RECTIFIED

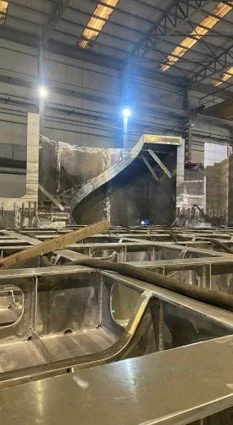

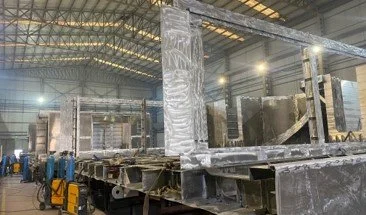

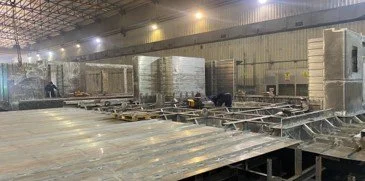

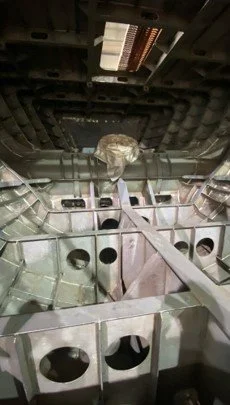

ALUMINIUM SUPERSTRUCTURE BLOCK CONSTRUCTION HAS STARTED

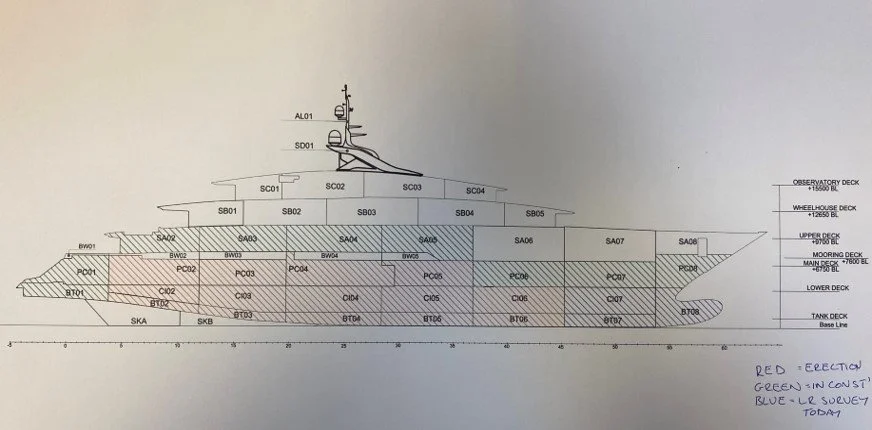

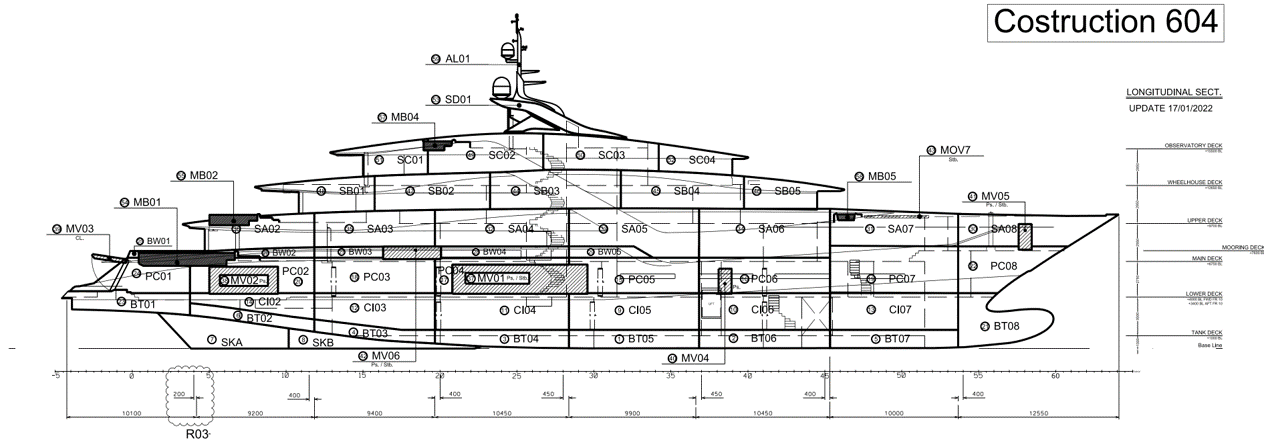

BLOCKS IN RED ARE IN ERECTION STAGE SHOWN

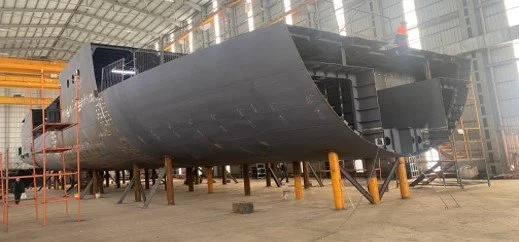

BLOCK ERECTION OVERVIEW FROM AFT ON LEFT AND FORWARD ON RIGHT

TENDER GARAGE & PC03,CI03,BT03,PC04,CI04,PC05,CI05,BT06

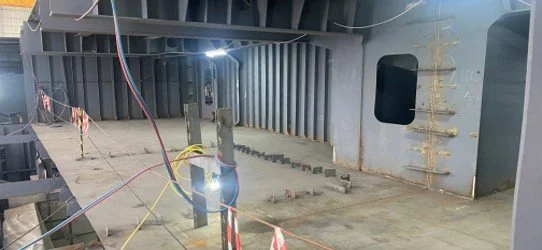

TENDER GARAGE  STARBOARD AND LOOKING AFT SHOWING SPLIT GARAGES

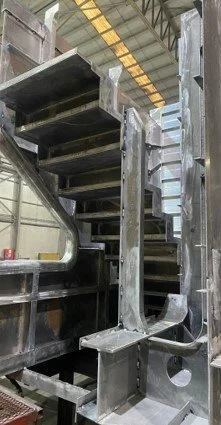

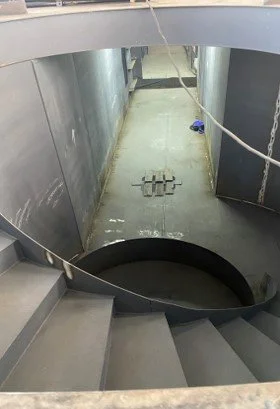

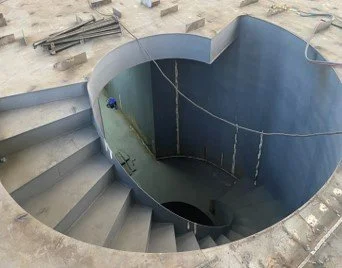

GUEST STAIRS TO TENDER GARAGE FROM PC04

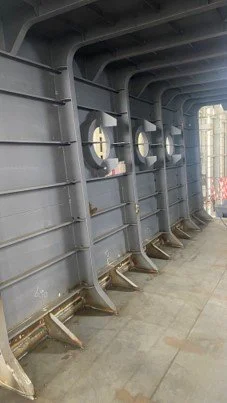

PC05 STARBOARD AND PORT

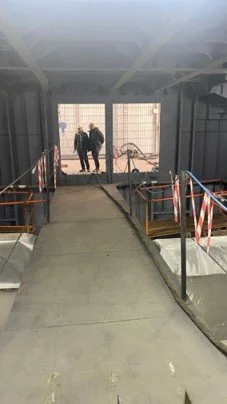

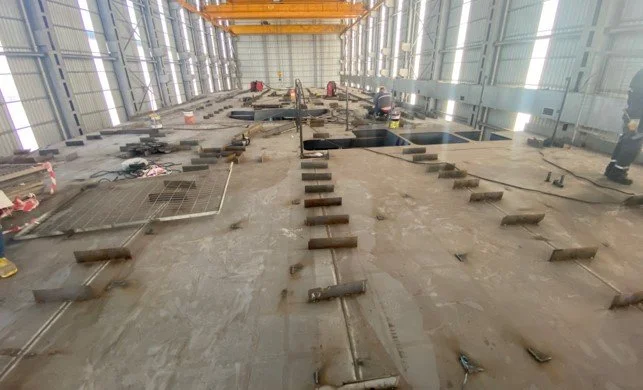

ENGINE ROOM WALKWAY & PC05,PC04 ON TOP OF TENDER GARAGE
